GYTA53 Outdoor 12 24 48 Core PE Out Sheath Underground Armored Fiber optic cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Outdoor Fiber Optic Cable
Number Of Conductors: ≥ 10
Jacket: PE Jacket
Central Strength: Steel Wire
Fiber Type: G652D
No. Of Fiber: 48 Or As Your Request
Operating Tempreture: 40°C ~ +70°C
Armoring: Polymer Coated Steel Tape
Color: Black
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: GYTA53
Payment & Shipping Terms
Packaging Details: 2-4 km/wooden drum
Payment Terms: T/T, Western Union
Supply Ability: 1000 Kilometer/Kilometers per Week
Product Description



GYTA53 Outdoor 12 24 48 Core PE Out Sheath Underground Armored Fiber optic cable



Product Description
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to
protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

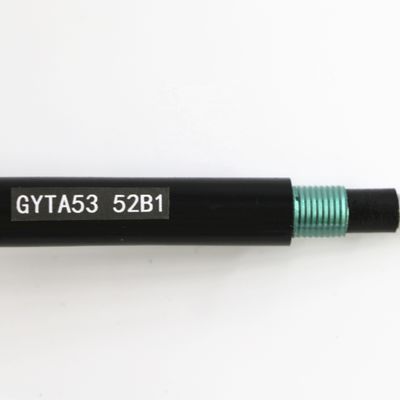

GYTA53 Outdoor 12 24 48 Core PE Out Sheath Underground Armored Fiber optic cable 0

FEATURE
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---APL moisture barrier
---PSP enhancing moisture-proof
---Water-blocking material
Specification
No. of cable

12
24
48
Fiber Model

G.652D


Design
(StrengthMember+Tube&Filler)


1+5



Central Strength Member
Material
Steel Wire



Diameter(±0.5)mm
1.4




Loose Tube
Material
PBT



Diameter(±0.06)mm
1.72
1.72
2.0

Thickness(±0.03)mm
0.30
0.30
0.32

The Max.Core NO./Tube
6
6
12

Filler Rope
Material
LDPE



Diameter(±0.06)mm
1.7
1.7
2.0

NO.
3
1
1

Moisture Barrier
Material
Polymer Coated Aluminum Tape



Thickness(±0.03)mm
0.20


Inner
Sheath
Material
MDPE



Thickness(±0.2)mm
0.9



Armoring
Material
Polymer Coated Steel Tape



Thickness(±0.2)mm
0.22



Water Bloaking Layer

Material

Filling Compound



Outer Sheath
Material
MDPE



Thickness(±0.2)mm
1.8


Cable Diameter(±0.5)mm

12.5
12.5
13.1
Cable Weight(±10)kg/km

152
167
167

Attenuation
1310nm
0.35dB/ km



1550nm
0.21dB/ km



Min. bending radius
Without Tension
12.5×Cable-φ



Under Maximum Tension
25.0×Cable-φ



Temperature range
(℃)
Installation
-20~+60



Transport&Storage
-40~+70



Operation
-40~+70



Packing & Delivery

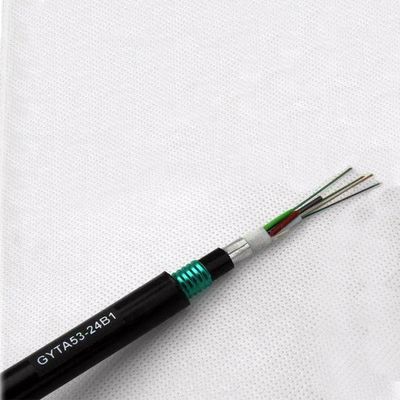

GYTA53 Outdoor 12 24 48 Core PE Out Sheath Underground Armored Fiber optic cable 1
Standard export package

Our Company
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of
professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

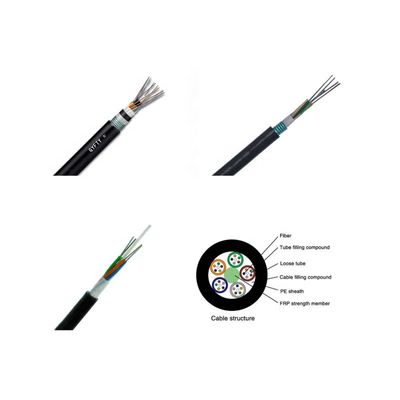

GYTA53 Outdoor 12 24 48 Core PE Out Sheath Underground Armored Fiber optic cable 2
GYTA53 Outdoor 12 24 48 Core PE Out Sheath Underground Armored Fiber optic cable 3
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
