Outdoor 2 Core FTTH Fiber Optic Drop Cable with FRP Strength Member
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Number Of Conductors: 2
Item: Outdoor 2 Core FTTH Fiber Optic Drop Cable
Fiber Count: 2 Core
Fiber Type: SM
Strength Member: FRP
Outer Sheath Material: LSZH
Outer Diameter: 2.0*5.0mm
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: Wanbao
Certification: CE
Model Number: GJYXFCH
Payment & Shipping Terms
Packaging Details: 2-3km/wooden drum
Supply Ability: 600 Kilometer/Kilometers per Day
Product Description
Wanbao Outdoor 2 Core FTTH Fiber Optic Drop Cable with FRP Strength Membe

Fiber Optic Drop Cable Describution:

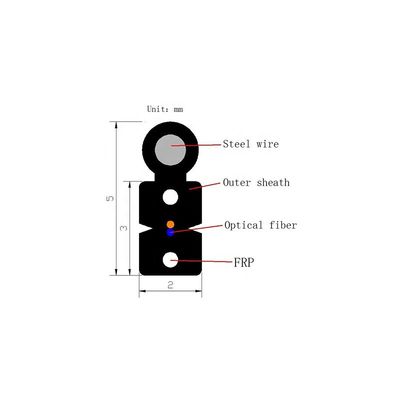

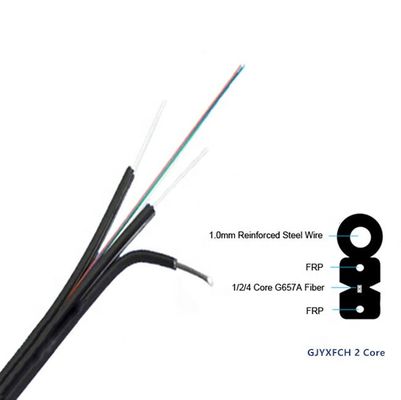

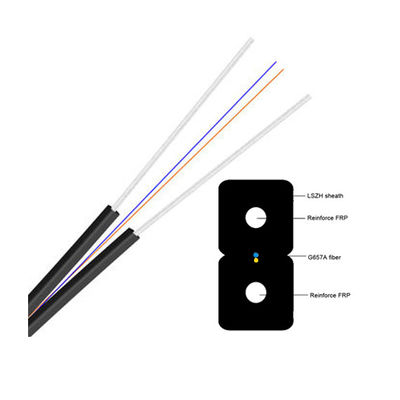

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LsZH sheath.



Fiber Optic Drop Cable Features:

  1. Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
  2. Simplex and duplex available
  3. With ceramic fettules
  4. PVC&LSZH cable option
  5. Low insertion loss and hight return loss
  6. Excellent repeatability and changeability
  7. Optical performance 100% factory test



Fiber Optic Drop Cable Application:

  1. All types of fiber cables with different structures
  2. High performance optical network operating
  3. High speed optical rout



Outdoor 2 Core FTTH Fiber Optic Drop Cable with FRP Strength Member 0
Outdoor 2 Core FTTH Fiber Optic Drop Cable with FRP Strength Member 1
Specification
No. of cable



2
Fiber Model



G.657A1
Strength member
Material


FRP

Diameter(±0.03)mm


0.5

NO.


2
Messenger wire
Diameter(±0.05)mm


1.0
Outer Sheath
Material


LSZH

Color


Black
Cable size(±0.2)mm



2.0×5.0
Cable Weight(±2)kg/km



20
Allowable Tensile Strength

Short Term
N
600


Long Term

300
Allowable Crush Resistance

Short Term
N/100mm
2200


Long Term

1000
Min. bending radius

Without Tension

10×Cable-φ


Under Maximum Tension

20×Cable-φ
Temperature range
(℃)

Installation

-20~+60


Transport&Storage

-40~+70


Operation

-40~+70
