Name: Outdoor Armored 12 Core Single mode GYXTW Fiber Optic Cable Price List
Brand: ODM/OEM
SKU: GYXTW
Price: 0.15 USD
Availability: InStock
Rating: 4.6 (114 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Fiber Optic Cable

Number Of Conductors: ≥ 10

Cores: 2~24

Style: Outdoor Fiber Optic Cable

Two Parallel: Steel Wire

Out Jacket: PE

Strengh Member: Steel Tape

Fiber: G652D

Loose Tube: PBT

Water Blocking Material: PSP

Packing: Wooden Drum

Single-Mode Fiber: G652D

Color: Black

Warranty: 10 Years

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: GYXTW

Payment & Shipping Terms

Packaging Details: 3km/wooden drum or on request

Payment Terms: T/T, Western Union

Supply Ability: 100 Kilometer/Kilometers per Week

Gallery

Outdoor Armored 12 Core Single mode GYXTW Fiber Optic Cable Price List

Product Description

Outdoor Armored 12 Core Single mode GYXTW Fiber Optic Cable Price List

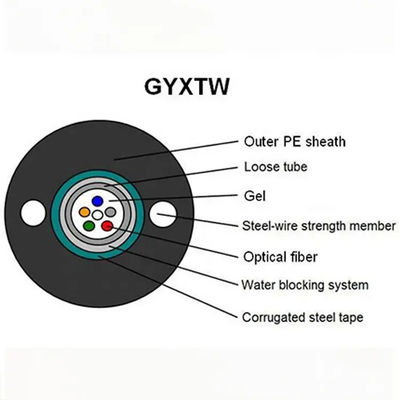

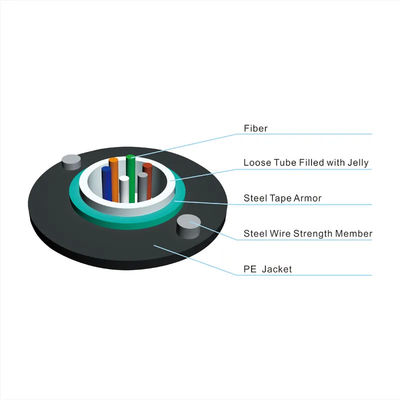

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Feature

* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length

Technical data

No. of cable			2~8	10~12	14~24
Fiber Model			G.652D
Strength Member	Material	Steel Wire
Strength Member		Diameter(±0.05)mm	0.8	0.8	0.8
Loose Tube	Material	PBT
		Diameter(±0.06)mm	2.1	2.4	2.8
		Thickness(±0.03)mm	0.32	0.35	0.4
		The Max.Core NO./Tube	8	12	24
Water Blocking layer(Material)			Water Blocking Tape
Armoring	Material	Steel Strip
Armoring		Thickness(±0.03)mm	0.25
Outer Sheath	Material	MDPE
Outer Sheath		Thickness(±0.2)mm	2
Cable Diameter(±0.2)mm			7.9	8.1	8.5
Cable Weight(±5)kg/km			60	63	68
Min. bending radius	Without Tension	10.0×Cable -φ
Min. bending radius		Under Maximum Tension	20.0×Cable -φ
Temperature range(℃)	Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70

Application
