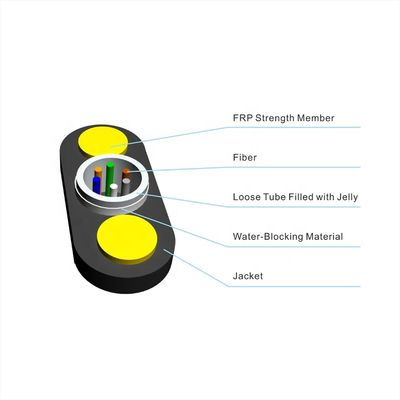

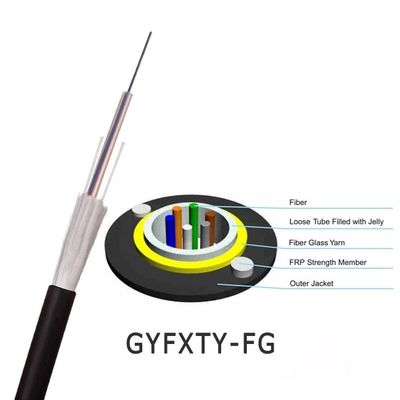

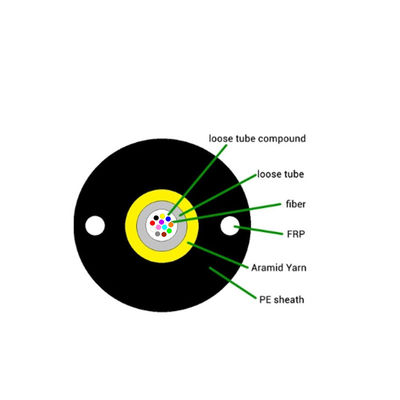

* two all dielectric strength members (FRP)
* loose buffer tube fully filled and centrally placed in the cable
* UV stablized HDPE outer sheath, black

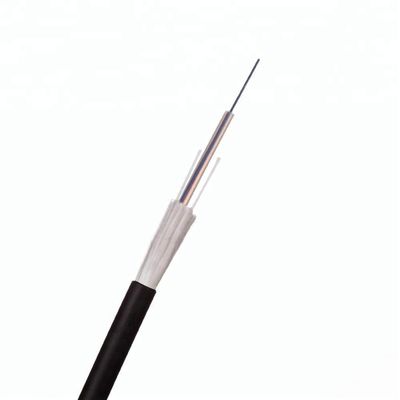

Good Quality GYFXTY outdoor 24 core single mode fiber optic cable
1 Fiber Type
|
|
|
|
|
||||
Single mode fiber
|
9/125 (G.652D or G.657A1)
|
|
|
|
||||
Fibre used in the cable manufacturing fully comply to ITU-T-Rec G.652D or G.657A1
|
|
|
|
|
||||
Attenuation
|
at 1310 nm
|
≤0,38 dB/km
|
|
|
||||
|
at 1550 nm
|
≤0,25 dB/km
|
|
|
||||
2 Fibre Colour Coding
|
|
|
|
|
||||
Color of fibers in a tube
|
blue, orange, green, brown, slate, white, red, black, yellow, violet, rose & aqua
|
|
|
|
||||
Colour of loose tube
|
natural
|
|
|
|
||||
Other fiber color sequences available on request.
|
|
|
|
|
||||
3 Water blocking Yarn
|
|
|
|
|
||||
Type
|
SZS-15.0 ×4 Root
|
|
|
|
||||
Color
|
White
|
|
|
|
||||
4 Sub Unit - Loose Tube
|
|
|
|
|
||||
Materials
|
PBT - polybutylene terephthalate
|
|
|
|
||||
Color
|
White
|
|
|
|
||||
Diameter
|
2.1±0.05mm
|
|
|
|
||||
Number
|
1 Root
|
|
|
|
||||
5 Strength Member
|
|
|
|
|
||||
Materials
|
FRP - Glass fiber reinforced plastic rods
|
|
|
|
||||
Color
|
White
|
|
|
|
||||
Diameter
|
1.0±0.05mm
|
|
|
|
||||
Number
|
2 Root
|
|
|
|
||||
6 Outer Sheath
|
|
|
|
|
||||
Materials
|
PE - Polyethylene
|
|
|
|
||||
Color
|
Black
|
|
|
|
||||
Diameter
|
6.5 ±0.2 mm
|
|
|
|
||||
Thickness
|
0.9±0.1 mm
|
|
|
|
No.
|
Item
|
Index
|
1
|
Length and packaging
|
2000m-4000m/wooden drums
|
2
|
Drum size
|
800×600×600mm (wooden drums)
|
3
|
Net weight
|
44.0 kg/km
|
4
|
Gross weight
|
59.0 kg/km
|
