Name: Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Brand: Wanbao or OEM
SKU: GYFXTY
Price: 0.05 USD
Availability: InStock
Rating: 4.8 (183 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Outdoor Fiber Optic Cable

Number Of Conductors: ≥ 10

Fiber Type: G652D/G657A1/G657A2

Fiber Count: 1-12 Cores

Loose Tube Color: At Your Request

Application: Duct Or Aerial

Outer Jacket Material: PE

Loose Tube Material: PBT

Color: Black

High Light:

Small Fiber Optic 12 Core Cable

Outdoor Fiber Optic 12 Core Cable

ODM outdoor optical cable

Basic Infomation

Place of Origin: China

Brand Name: Wanbao or OEM

Certification: ISO9001

Model Number: GYFXTY

Payment & Shipping Terms

Packaging Details: 2KM/Wooden Drum

Payment Terms: T/T, Western Union

Supply Ability: 1000000 Meter/Meters per Week

Gallery

Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM

Product Description

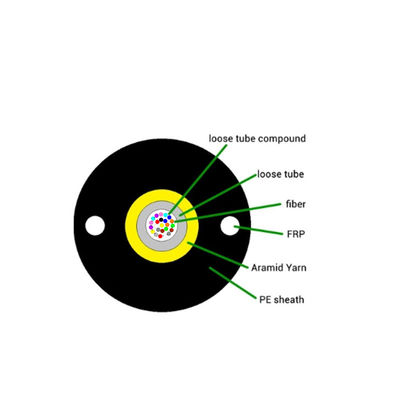

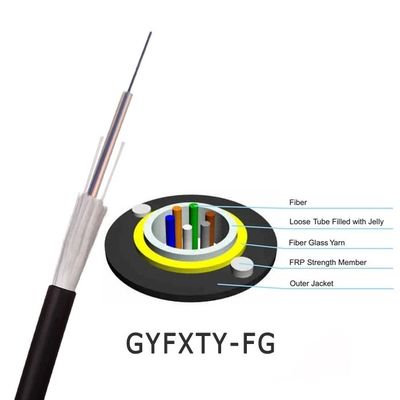

Small Volume Outdoor 1-12 Core Single Mode Fiber Optic Cable With Glass Yarn

Fibre Optic Cabling Internal/External Uni-loose Tube Distribution Cable GYFSTH 2-24 core G652D/G657A/G655

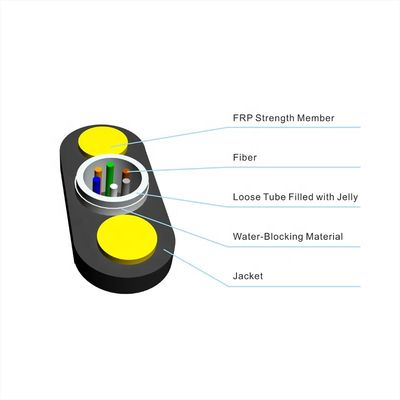

Outdoor drop cable having FRP rods as strength members and containing 1/2/4/6/8/12/24 fiber in full compliance with ITU-T G.652D or G.657A1. The offered cables are fully compliant to the relevant IEC specifications

PERFORMANCE

1. A choice of multimode and singlemode fibre types and specifications are offered with fibre counts from four to twenty four in
the standard range.
2. The very small diameter, lightweight and excellent environmental performance makes the cable ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.

TECHNICAL DATA

No. of cable					2-24
Fiber Model					G.652D
Loose tube	Material			PBT
		Diameter(±0.03)mm			0.35
		Thickness(±0.06)mm			3.0
Outer Sheath	Material			LSZH
Outer Sheath		Thickness(±0.1)mm			1.3
Cable Diameter(±0.2)mm					6.4
Cable Weight(±5)kg/km					49
Min. bending radius			Without Tension	15.0×Cable-φ
Min. bending radius				Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)			Installation	-5~+50
				Transport&Storage	-30~+70
				Operation	-20~+70

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

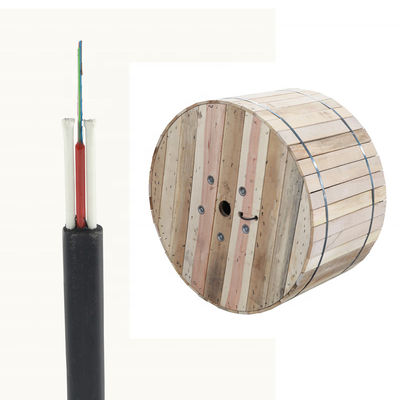

Packaging detail: 2km / export wooden drum (your request is available )

Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st

This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.

FAQ & Contact

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
