Outdoor overhead aerial dielectric 6 core single mode adss fiber optic cable price

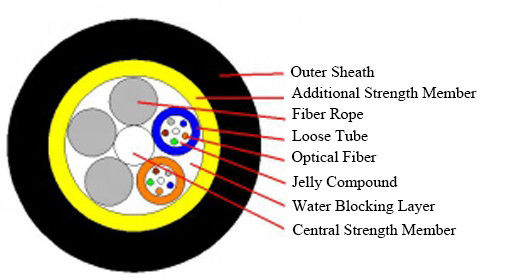

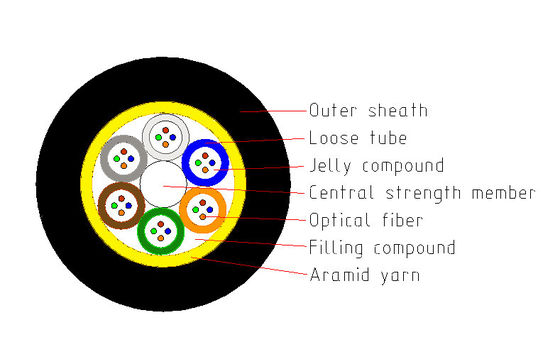

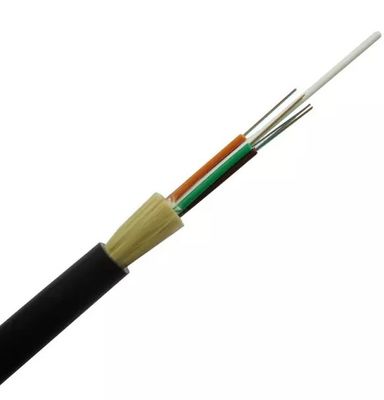

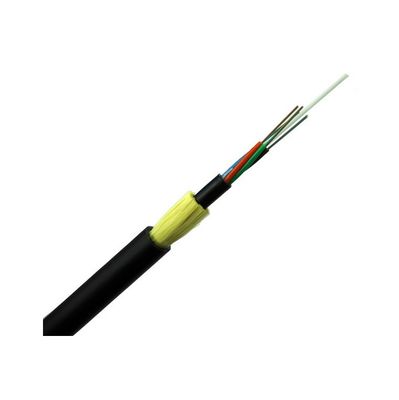

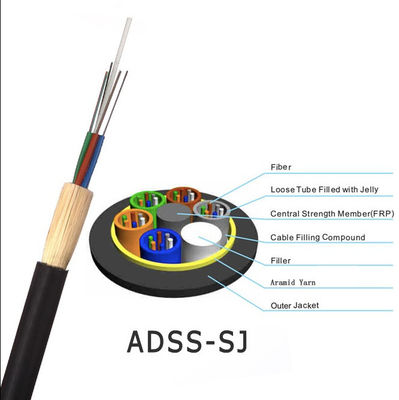

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature
* The design life span is 30 years
|
No. of cable
|
|
|
6
|
||
|
Design
(StrengthMember+Tube&Filler) |
|
|
1+5
|
||
|
Fiber type
|
|
|
G.652D
|
||
|
Central Strength Member
|
|
Material
|
FRP
|
||
|
|
|
Diameter
(±0.05mm) |
1.5
|
||
|
Loose Tube
|
|
Material
|
PBT
|
||
|
|
|
Diameter
(±0.05mm) |
2.1
|
||
|
|
|
Thickness
(±0.03mm) |
0.35
|
||
|
|
|
MAX.NO./per
|
6
|
||
|
Filler Rope
|
|
Material
|
PE
|
||
|
|
|
Diameter
(±0.05mm) |
1.8
|
||
|
|
|
NO.
|
4
|
||
|
Water Blocking Layer
|
|
Material
|
Flooding Compound
|
||
|
Additional Strength Member
|
|
Material
|
Aramid Yarn
|
||
|
Outer Sheath
|
|
Material
|
MDPE
|
||
|
|
|
Thickness
|
1.8(nominal)
|
||
|
|
|
Color
|
black.
|
||
|
Cable Diameter(±0.2mm)
|
|
|
9.6
|
||
|
Cable Weight(±10.0kg/km)
|
|
|
78
|
||
|
Cable breaking strength(RTS)
|
|
|
5.8Kn
|
||
|
Working Tension (MAT)
|
|
|
2.2Kn
|
||
|
Crush Resistance
|
Short Term
|
|
2200 |
||
|
|
Long Term
|
|
1100
|
||
|
Min. bending radius
|
Without Tension
|
|
10.0×Cable -φ
|
||
|
|
Under Maximum Tension
|
|
20.0×Cable -φ
|
||
|
Temperature range
(℃) |
Installation
|
|
-20~+60
|
||
|
|
Transport&Storage
|
|
-40~+70
|
||
|
|
Operation
|
|
-40~+70
|
||
