Features

Specifications

Type: Outdoor Fiber Optic Cable

Number Of Conductors: 4

Mode: Steel Armored

Fiber Count: 4 Core

Fiber Type: G652D Single Mode

Self-supporting: One 2.0mm Solid Steel Wires

Loose Tube: PBT

Outer Sheath Material: PE

Armored Material: Steel Tape

Color: Black

High Light:

Customized Steel Wire Armoured Cable

Optical Steel Wire Armoured Cable

PE Optical Fiber Cable 4 Core

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: GYXTC8S

Payment & Shipping Terms

Packaging Details: 2-3km/wooden drum

Payment Terms: T/T, Western Union

Supply Ability: 100 Kilometer/Kilometers per Week

Gallery

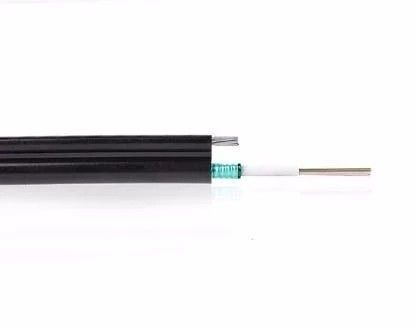

Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath

Product Description

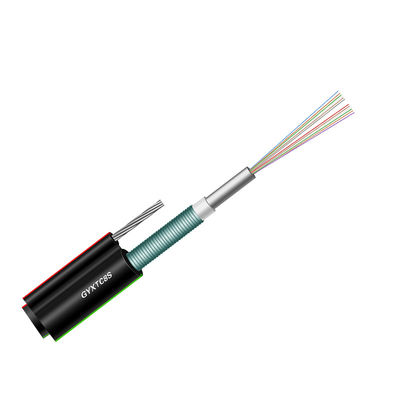

Wanbao steel armored aerial 4 core single mode fiber optic cable figure 8 GYXTC8S

Name: Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Brand: ODM/OEM
SKU: GYXTC8S
Price: 0.10 USD
Availability: InStock
Rating: 4.7 (190 reviews)

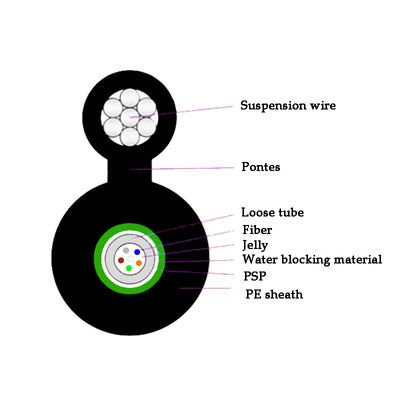

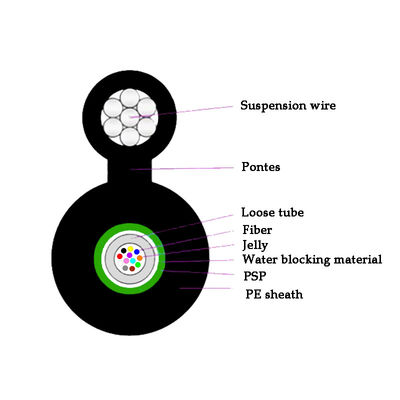

In the GYXTC8S cable, single-mode/multimode the fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member.The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

Specification

No. of cable					4	6	12	24
Fiber Model					G.652D
Loose Tube			Material	PBT
				Diameter(±0.06)mm	2.0				2.8
				Thickness(±0.03)mm	0.35
				The Max.Core NO./Tube	4	6	12	24
Water Blocking layer(Material)					Water Blocking Tape
Armoring			Material	Steel Tape
Armoring				Thickness(±0.03)mm	0.25
Messenger Wire			Material	Steel Wire
Messenger Wire				Size(±0.05)mm	2.0mm
Web			Material	MDPE
Web				Size(±0.1)mm	2.0×2.0
Outer Sheath①			Material	MDPE
Outer Sheath①				Thickness(±0.1)mm	1.2
Outer Sheath②			Material	MDPE
Outer Sheath②				Thickness(±0.1)mm	1.5
Cable Diameter(±0.5)mm					6.6×11.5				7.4x12.5
Cable Weight(±10)kg					93				102
Min. bending radius	Without Tension			10.0×Cable-φ
Min. bending radius		Under Maximum Tension			20.0×Cable-φ
Temperature range (℃)	Installation			-20~+60
		Transport&Storage			-40~+70
		Operation			-40~+70

Application

1	Tensile Strength	Short Term	1500N
1	Tensile Strength			Long Term	600 N
2	Crush Resistance	Short Term	1000 (/100mm)
2	Crush Resistance			Long Term	300 (/100mm)

The properties of single mode optical fiber (ITU-T Rec. G.652.D)

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.36 dB/km ≤ 0.32 dB/km ≤ 0.22 dB/km ≤ 0.30 dB/km
Point discontinuity	≤ 0.05 dB
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm2.km)
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km)
PMDQ (Quadrature average*)	≤0.2 ps/km1/2
Mode field diameter @ 1310 nm	9.2±0.4 um
Core / Clad concentricity error	≤ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤1.0%
Primary coating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm	≤ 0.1 dB/km
