Home /Products/Fiber Optic Cable/96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS

96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS

10 meters
MOQ
$1.00 - $2.00/meters
Price
96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Outdoor Fiber Optic Cable
Number Of Conductors: ≥ 10
Installation: Aerial Or Duct
Fiber Type: G652D
Fiber Count: 2~288Cores
Feature: Water-resistant
Central Strength Member: Steel Wire
Outer Sheath Material: PE
Cable Core Protection: PSP
Operating Temperature: -40℃~+70℃
Multi-Mode Fiber: Not Applicable
Use: FTTH
Highlight:

96Core Fiber Optic Cable

,

PE Sheath Fiber Optic Cable

,

GYTS fiber optic cord
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: GYTS
Payment & Shipping Terms
Packaging Details: roller/carton box
Payment Terms: T/T, Western Union
Product Description



Optical cable 96 core G652D fiber optic cable with PE Sheath steel wire GYTS

Product Description
96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS 0

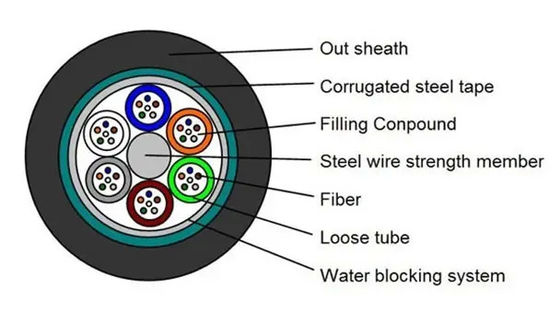

Stranded Loose Tube Light-armored cable GYTS

1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
2.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress.
3.The cable is completed with a PE sheath.

Feature

* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Specially designed compact structure is good at preventing loose tubes from shrinking
* Crush resistance and flexibility
* PE sheath protects cable from ultraviolet radiation
* The following measures are taken to ensure the cable watertight:
* Steel wire used as the central strength member
* Loose tube filling compound
* 100% cable core filling
* PSP enhancing moisture-proof

Performance

* Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
* Fiber : G652D
* Installation : Aerial or duct
* Application : Apply to Long distance communication system, Local area network system
* Lifetime : above 30 years
* Operating temperature : -40℃~+70℃
* Permisson bent radius Static : 10 times O.D. Dynamic : 20 times O.D.

Cable

Count

Out

sheath

Dia.

 Weight

Minimum

allowable TensileStrength

(N)

Minimum

allowable

Crush Load

(N/100nm)

Minimum

Bending

Radius(MM)

Storage

Temperature
(MM) (kg) Short term Long term Short term Long term Short term Long term (°C)
24 10.5 105 1500 600 1000 300 20D 10D -40+60
36 10.5 105 1500 600 1000 300 20D 10D -40+60
42 10.5 105 1500 600 1000 300 20D 10D -40+60
48 10.5 105 1500 600 1000 300 20D 10D -40+60
60 10.5 105 1500 600 1000 300 20D 10D -40+60
72 13.5 208 1500 600 1000 300 20D 10D -40+60
96 13.5 208 1500 600 1000 300 20D 10D -40+60
144 15.5 295 1500 600 1000 300 20D 10D -40+60
Technical data
96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS 1
Details Images
96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS 2
96 Core G652D Fiber Optic Cable Cord With PE Sheath Steel Wire GYTS 3
