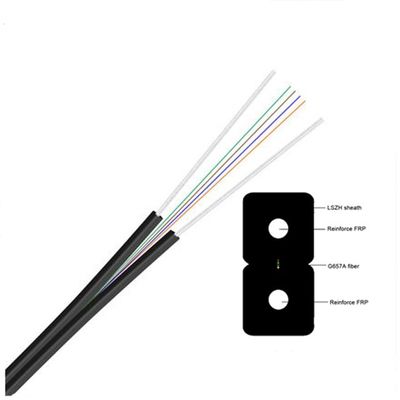

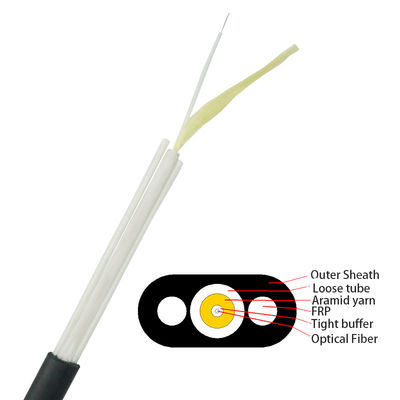

Manufacturing outdoor flat cable 2 core single mode fiber optic cable GYFXJBY
|
No. of cable
|
|
|
1-2
|
||
|
Fiber Model
|
|
|
G657A1
|
||
|
Tight buffer
|
Material
|
|
PVC
|
||
|
|
Thickness
|
|
0.32±0.03mm
|
||
|
|
Diameter
|
|
0.9(±0.05)mm
|
||
|
|
Color
|
|
white
|
||
|
Loose tube
|
Material
|
|
LSZH
|
||
|
|
Thickness
|
|
0.35(±0.05)mm
|
||
|
|
Diameter
|
|
2.8(±0.1)mm
|
||
|
|
Color
|
|
white
|
||
|
Strength Member
|
Material
|
|
FRP
|
||
|
|
Diameter
|
|
1.5(±0.05)mm
|
||
|
|
No.
|
|
2
|
||
|
Outer Sheath
|
Material
|
|
MDPE
|
||
|
|
Color
|
|
Black
|
||
|
Cable Diameter
|
|
|
(5.0±0.2)×(8.0±0.2)mm
|
||
|
Cable Weight
|
|
|
47(±6)kg/km
|
||
|
Max. allowable tension
(Short-term) |
|
|
1250N
|
||
|
Max. allowable tension
(Long-term) |
|
|
300N
|
||
|
Crush resistance test
|
|
|
1000N/10cm
|
||
|
Min. bending radius
|
|
Static
|
20x cable Ø
|
||
|
|
|
dynamic
|
10x cable Ø
|
||
|
Temperature range
(℃) |
|
Installation
|
-30~+70
|
||
|
|
|
Transport&Storage
|
-40~+70
|
||
|
|
|
Operation
|
-20~+65
|
||
