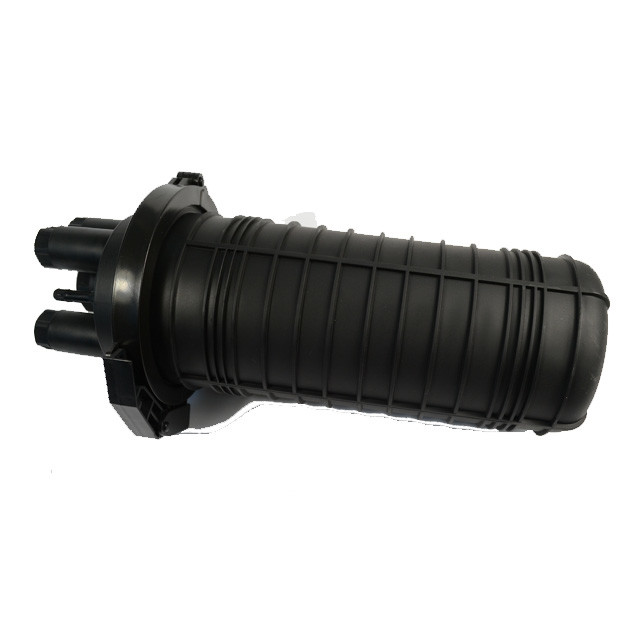

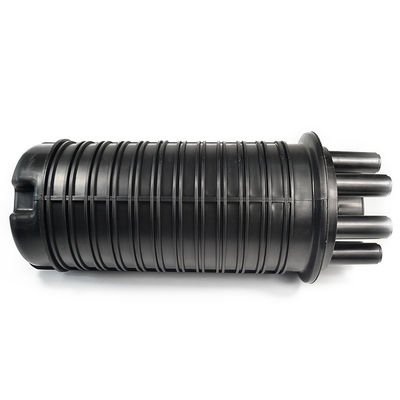

Name: FTTH Fiber Optic Splice Closure 12c 24c 48c With ISO9001 Certification
Brand: A Fiber Solution Technology Co., Ltd
SKU: 216 CORE ENCLOSURE
Price: 11.80 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Racks & Enclosure

Use: Overhead, Buried Directly, Manhole

Warranty Time: 5

Network: Fiber Optic

Product Name: Fiber Optic Splice Closure

Material: Strengthen Polymer Plastic

Packing: 1 Pcs /box

IP Grade: IP68

Size: 540mm(H)*150mm(D)

Trays/Core: 12/24/48/96 Core

Ambient Temperature: -40°C+70°C

Port: Shenzhen Or HK

Certification 2: ISO9001

Ceritfication 1: ROHS

Highlight:

FTTH Fiber Optic Splice Closure

Fiber Optic Splice Closure 12c

48c ftth splice closure

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: 216 CORE ENCLOSURE

Payment & Shipping Terms

Packaging Details: 12c 24c 48c 96c 144c 288c 432c FTTH dome closures optical fiber optic splice closure dome,<br>Package with wooden spool or Customized package

Payment Terms: T/T, Western Union

Supply Ability: 1000 Piece/Pieces per Day

Gallery

FTTH Fiber Optic Splice Closure 12c 24c 48c With ISO9001 Certification

Product Description

12c 24c 48c 96c 144c 288c 432c FTTH dome closures optical FOSC fiber optic splice closure

fiber optic splice closure

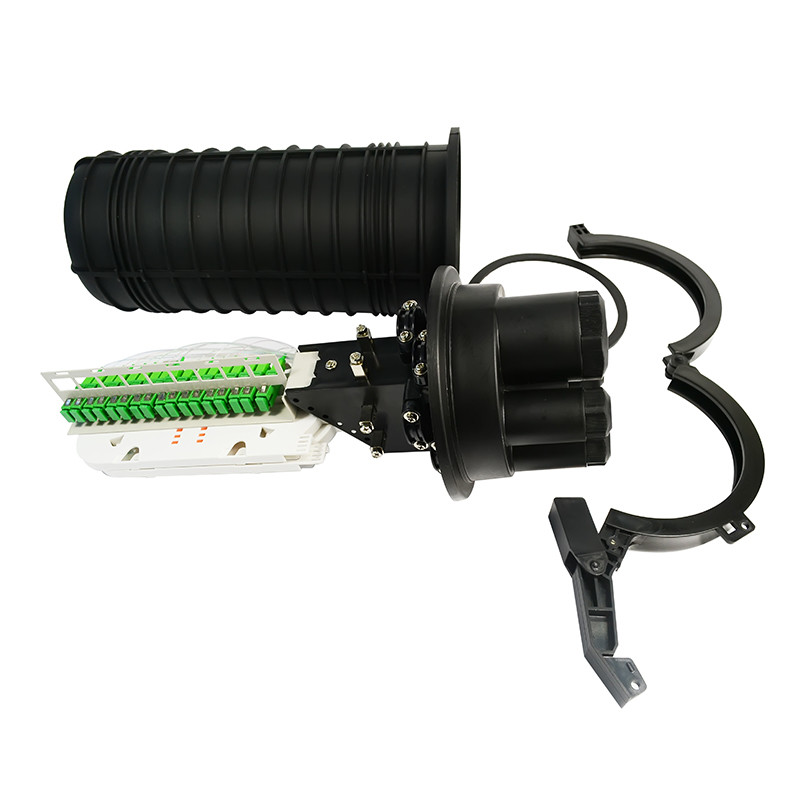

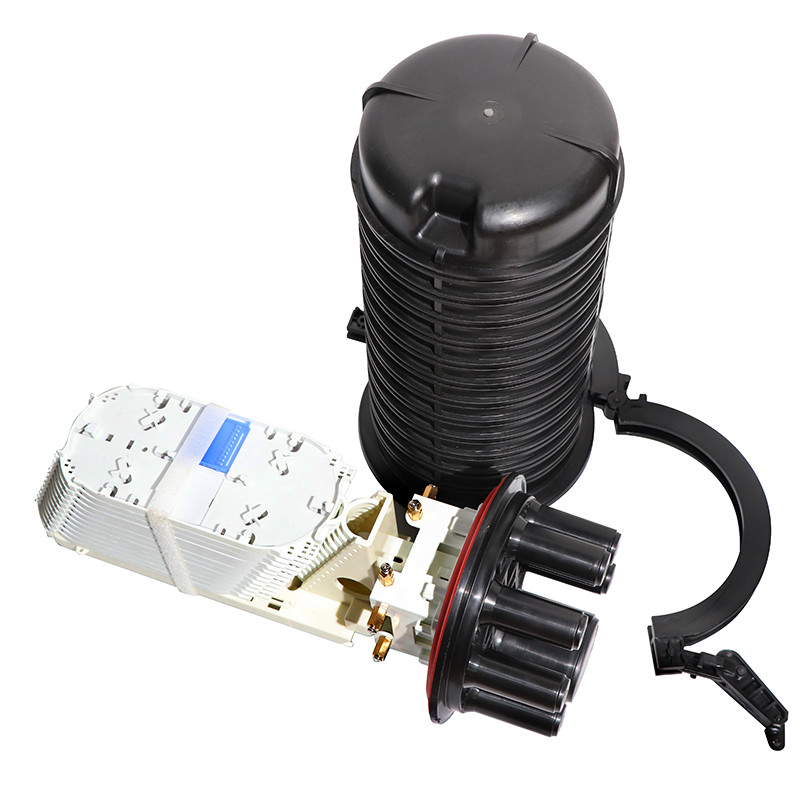

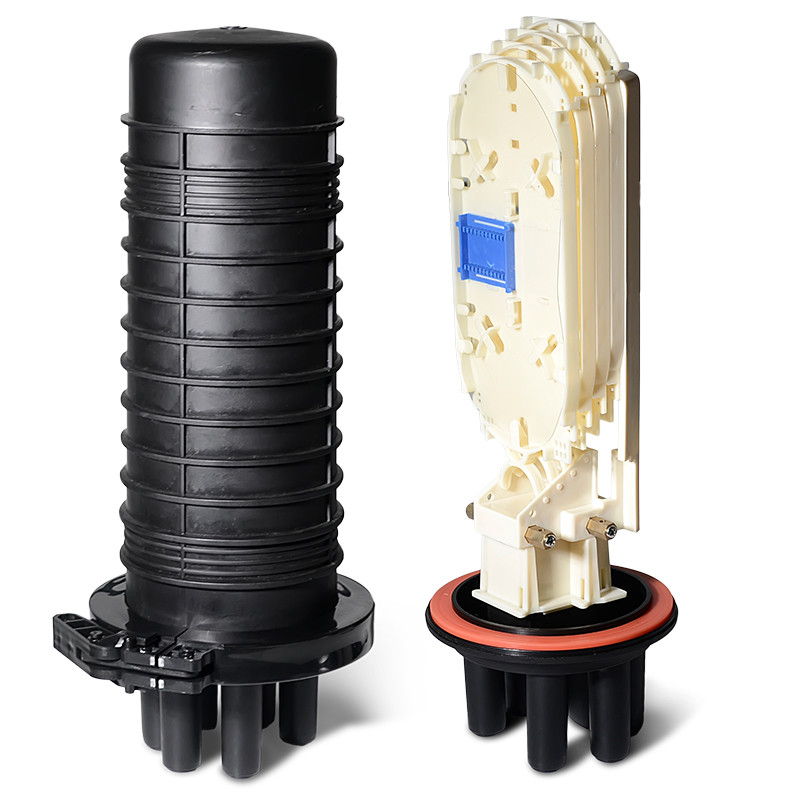

FOSC-008 closures are a combination cable closure and splice organizer. The splicing joint is on the middle of splice tray. They combine mechanical seals and heat-shrinkable sleeves with hot-melt adhesives to environmentally seal fiber cable splice points. Itis designed for use with any cable construction (loose buffer tube, central core tube, loose fiber, and ribbon), in any environment (aerial, pedestal, buried, handhole, and manhole), and for numerous splice applications (express, tap-off, branch, and repair).conform the standard communications industry of The People's Republic of China: YD/T814-2004.

Name :	Fiber Optic Splice Closure
Country of origin :	Ningbo,China
Capacity:	12/24/48/96/144/288/432 core
Height:	420mm
Diameter:	140mm
Application :	FTTH
Packing :	1 pcs/box
Material :	Strengthen Polymer Plastic
Warranty period :	25 year

Advantage

1.The closure can be used in duct, buried, overhead..etc

2.High quality impact material.pp and internal is ABS

3.Easy open tray.

4.Fiber storage with metal bracket.

5.Modular fiber management system

6.Cable diameter range: 9~22

7.Sealing way of cables:Mechanical seaing by silicon rubber

8.Quality warranty:2 years

9.Life span:more than 25 years 10.IP rating is IP68
