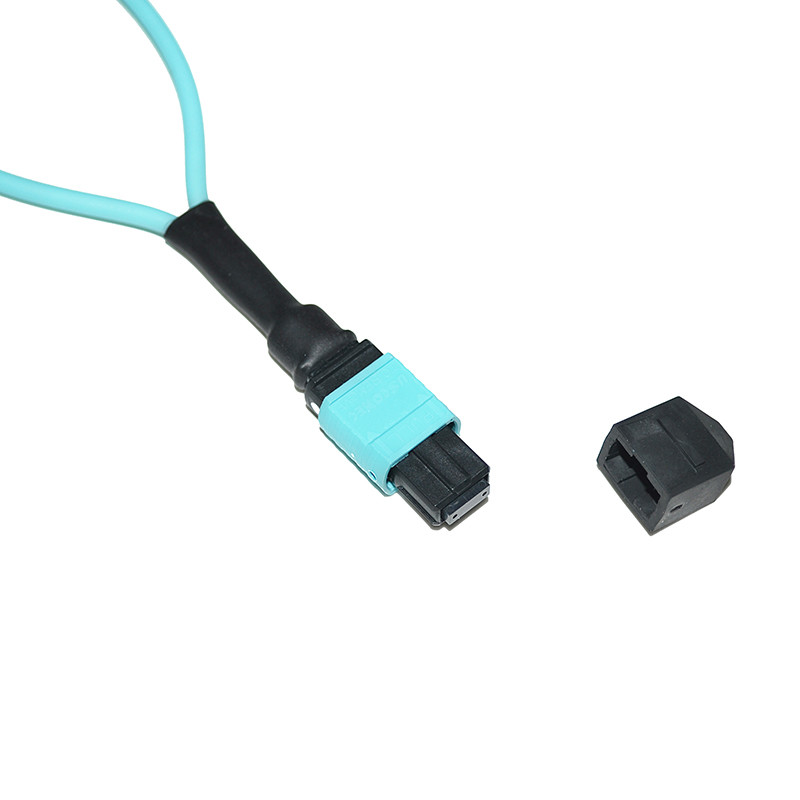

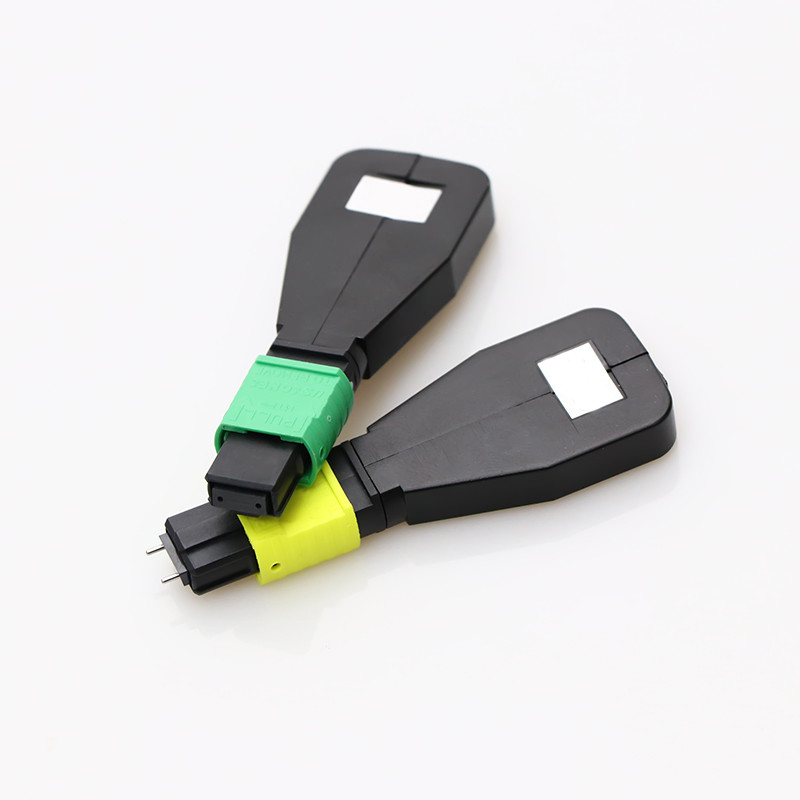

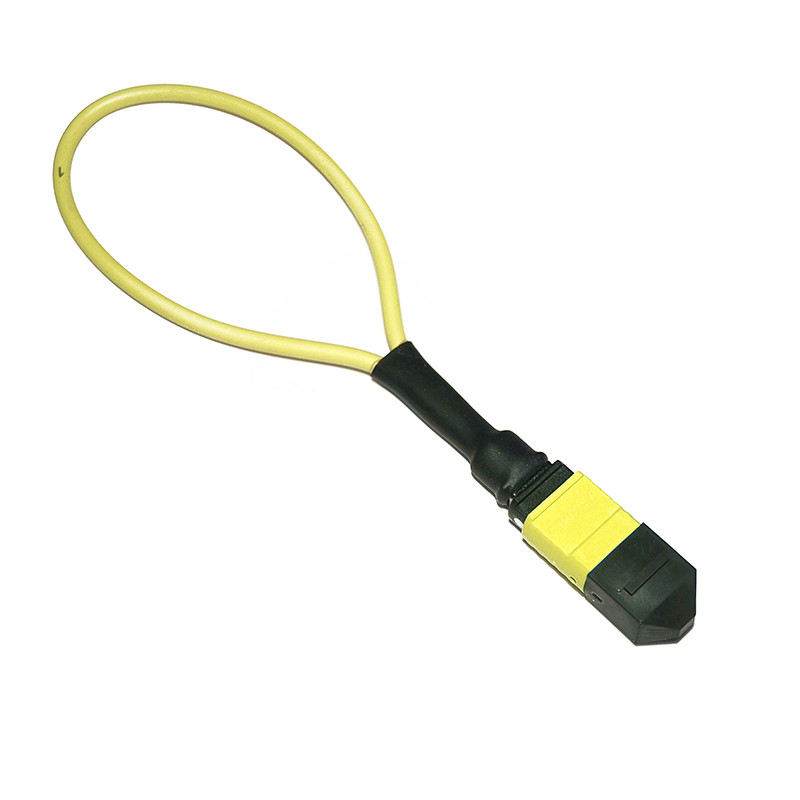

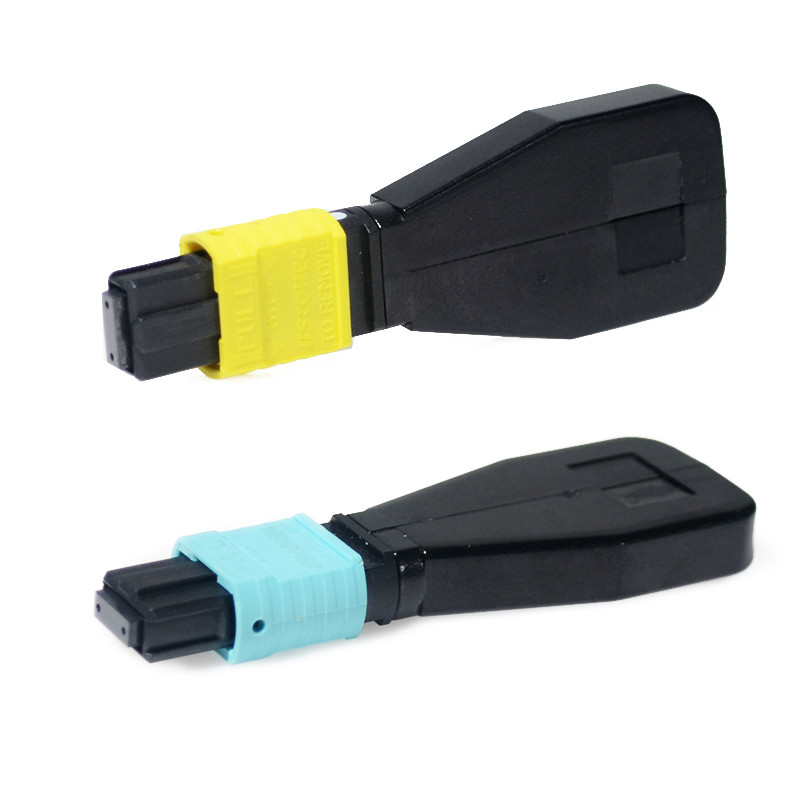

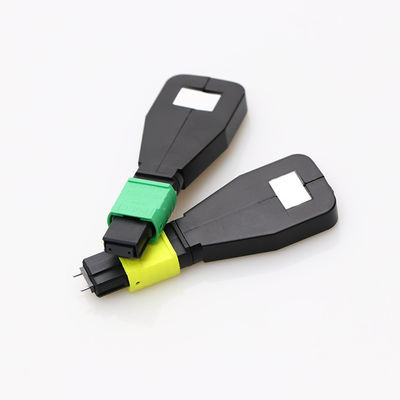

Professianal manufacturer MPO Fiber Optic Loopback,24 Cores,OM4 MPO Optical Loop Back
IPFX(MTP/MO)
ODVA(MTP/MPO)
High Density
40GbE QSFP+ Optical Testing
Research and Development
Manufacturing Test
Troubleshooting
Quality Control
Training
Available in a wide variety of wiring configurations and fiber types
All loopbacks meet TIA/EIA and IEC intermateability standards
8 , 12, and 24 Fiber available
Easy Installation/Removal,available with or without Pull tabs
Compact and portable with lanyard feature
|
Performance Level
|
|
|
Standard
|
|
Elite
|
|
||||
|
Connector
|
Mode
|
Endface
|
IL(max) (dB)
|
RL(min) (dB)
|
IL(max) (dB)
|
RL(min) (dB)
|
||||
|
MPO/MTP
|
SM
|
12F/APC
|
≤0.70
|
≥60
|
≤0.35
|
≥60
|
||||
|
|
|
24F/APC
|
≤0.75
|
≥60
|
≤0.35
|
≥60
|
||||
|
|
|
|
|
|
|
|
||||
|
|
MM
|
12F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||||
|
|
|
24F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||||
|
|
|
|
|
|
|
|
||||
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
Mechanical Properties
|
|
|
|
|||
|
Item
|
|
Criteria
|
Conformance
|
|||
|
△IL After 50 Matings
|
MPO/MTP
|
≤0.3dB
|
GR-1435
|
|||
|
△IL After 500 Matings
|
LC/SC/FC/ST
|
≤0.2dB
|
IEC 61300-2-2
|
|||
|
Min Bend Radius (Dynamic)
|
|
20*OD (Cable Diameter)
|
|
|||
|
Min Bend Radius (Static )
|
|
15*OD (Cable Diameter)
|
|
|||
|
Environment Conditions
|
|
|
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|||
|
Operation Temperature
|
-40~60°C
|
IEC 61753-1
|
|
|||
|
Storage Temperature
|
-45~85°C
|
|
|
|||
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.
Within 1-2 working days
3-7 working days according various quantities
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
1 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
