16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux
Features Gallery Product Description Request A Quote
Features
Specifications
Type: DWDM Module, ABS Box Module
Use: FTTX
Channel Number: 4CH, 8CH Or 16CH
Structure: Mux Or Demux
Channel Spacing: 100G(0.8nm)
Channel Wavelength: ITU 100 GHz Grid
Input/Output Connector: FC, SC, LC Optional
Input/Output Length: 0.5m, 1m Or Customized
Pigtail Diameter: 0.9mm
Package Dimension: 100X80X10mm
Application: Telecommunication
High Light:

8Channel WDM Wavelength Division Multiplexing

,

16CH WDM Wavelength Division Multiplexing

,

16CH 16 Channel DWDM Mux

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: DWDM
Payment & Shipping Terms
Packaging Details: Plastic box <br>Carton box <br>Or as customers requirements
Payment Terms: T/T, Western Union
Supply Ability: 10000 Set/Sets per Day
Product Description
Product Description
4CH 8CH 16CH 100GHz DWDM Module 8 Channel 16 Channel Mux Demux DWDM
DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

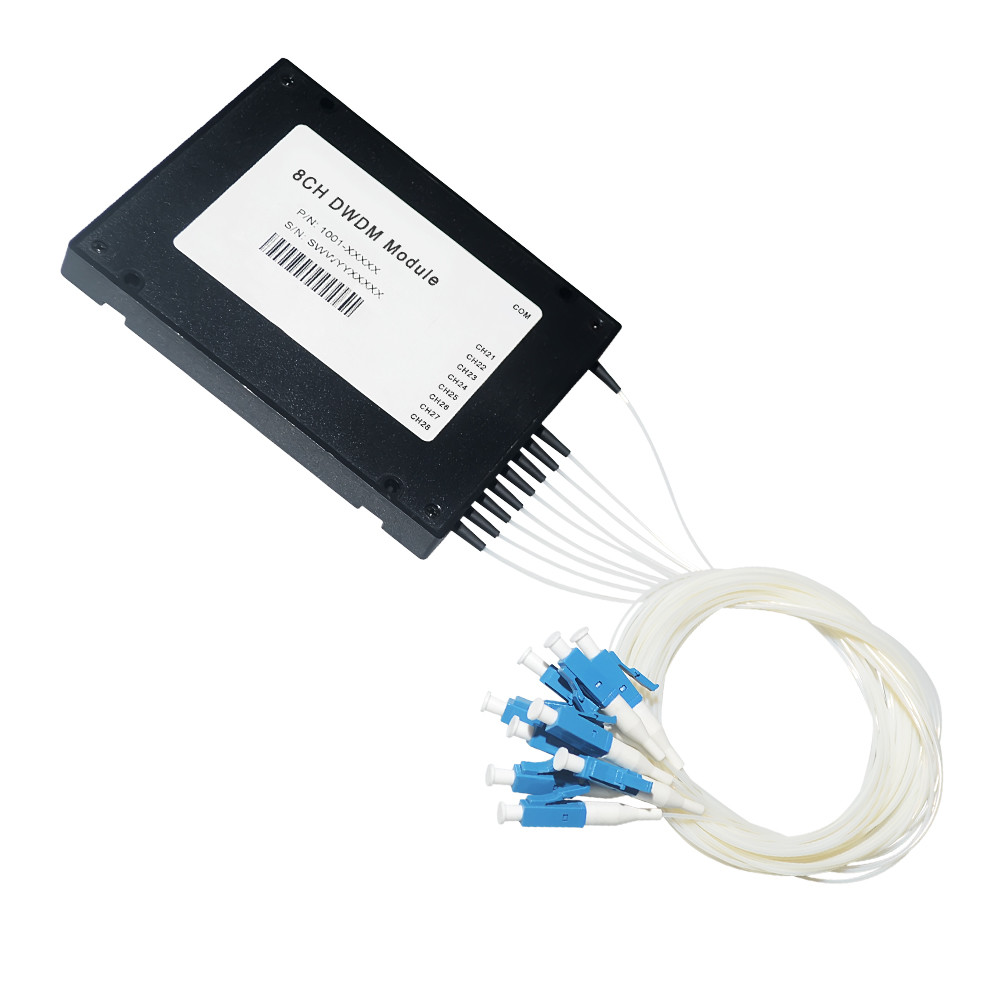

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux 0

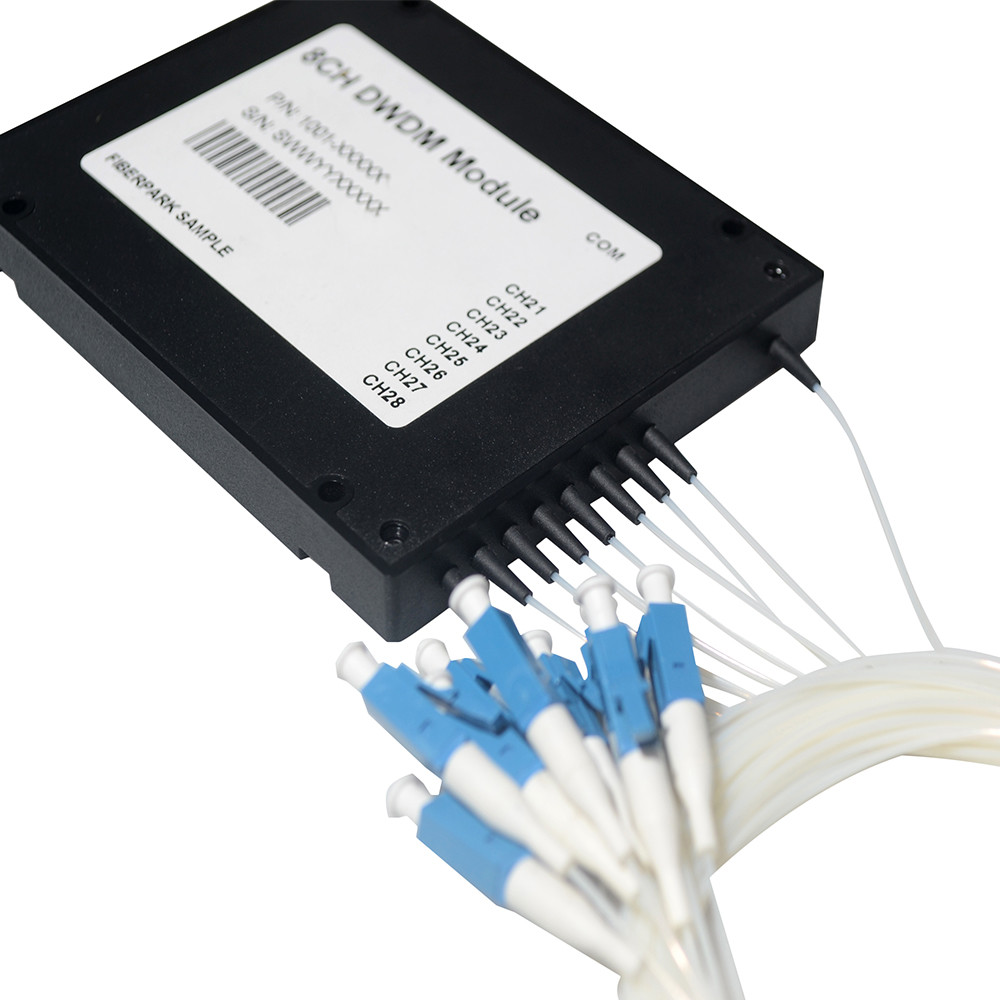

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux 1

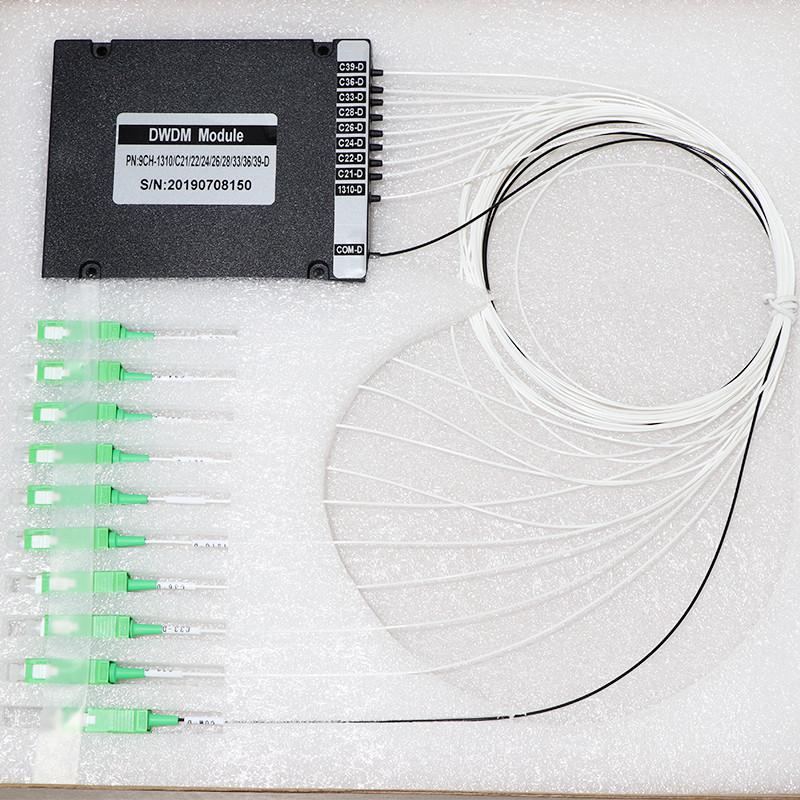

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux 2

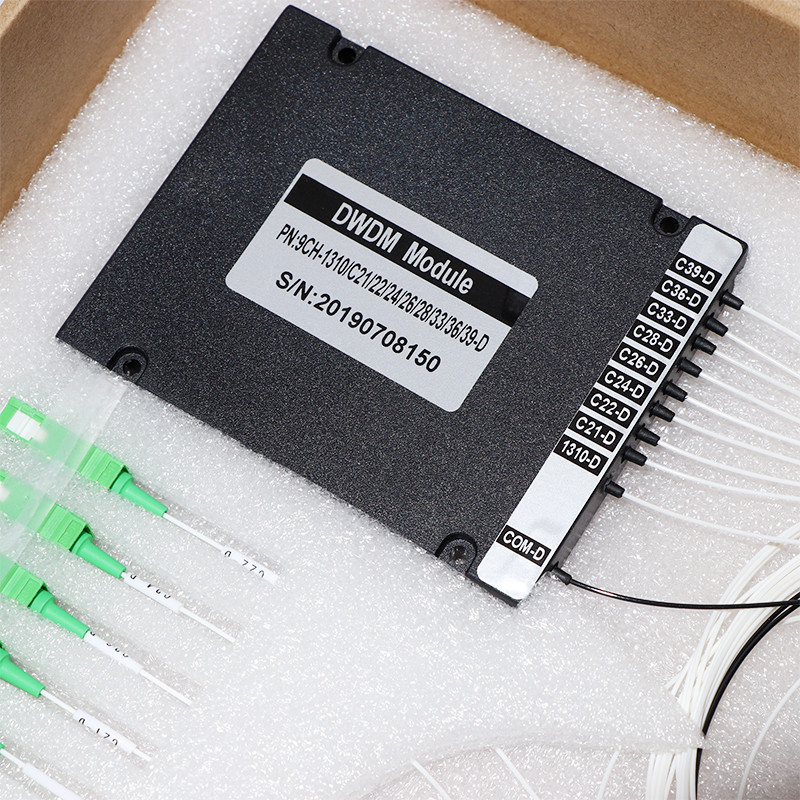

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux 3

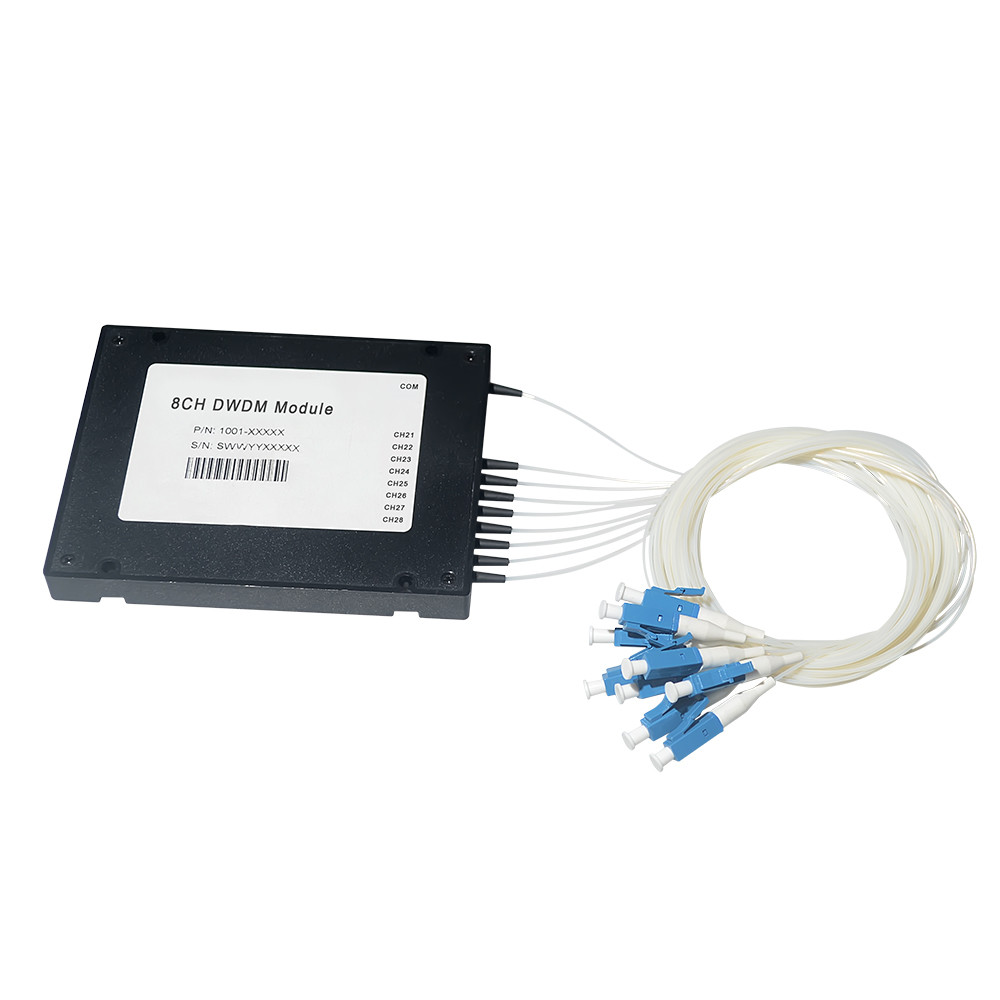

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux 4
Parameter

4-Channel

8-Channel

16-Channel



Mux
Demux
Mux
Demux
Mux
Demux
Channel Wavelength(nm)

ITU 100GHz Grid





Channel Spacing(GHz)

100(0.8nm)





Channel Passband (@-0.5dB bandwidth(nm)

>0.25





Insertion Loss(dB)

≤1.8

≤3.7

≤5.5

Channel Uniformity(dB)

≤0.6

≤1.0

≤1.5

Channel Ripple(dB)

<0.3





Isolation(dB)
Adjacent
N/A
>30
N/A
>30
N/A
>30

Non-adjacent
N/A
>40
N/A
>40
N/A
>40
Insertion Loss Temperature Sensitivity(dB/℃)

<0.005





Wavelength Temperature Shifting (nm/℃)

<0.002





Polarization Dependent Loss(dB)

<0.1

<0.1

<0.15

Polarization Mode Dispersion(ps)

<0.1





Directivity(dB)

≥50





Return Loss(dB)

≥45





Maximum Power Handling(mW)

300





Opterating Temperature(℃)

-5~+75





Storage Temperature (℃)

-40~+85





Package dimension(mm)

A: L100×W80×H10







B: L120×W80×H18







C: L141×W115×H18
