Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core

10pcs
MOQ
$35.00 - $98.00/pieces
Price
Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Terminal Box
Use: FTTX
Network: 4g, 3G
Name: FTTX MST Terminal Box
Dimensions(LxWxH): 365x137x90mm(Without Cover) 375x142x120mm(With Cover)
Ports: 12 Ports
Ingress Protection: IP68
Adapter: ODVA Adaptor
Round Cable OD: 5.0mm To 14.0mm
Number Of PLC: 1to 2pcs
Number Of Fusion Protection Steeve: 1to 24pcs
Cablestrengthmember: ArmouredorNon-armoured
Temperature Range: -40~80℃
High Light:

IP68 Fiber Optic Terminal Box

,

24Core Fiber Optic Terminal Box

,

Waterproof 12 core terminal box

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS
Model Number: FTTX terminal box
Payment & Shipping Terms
Packaging Details: Ready to ship Custom tower MST FTTX Fiber waterproof box 8/12/24 port MPO SC fiber Optic terminal box IP68 with odva adapter Independent carton or according to the customers' requirements
Payment Terms: T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Quarter
Product Description
Product Description
Waterproof IP68 8/12/24core Optitap MPO Tower MST Distribution Terminal Box
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

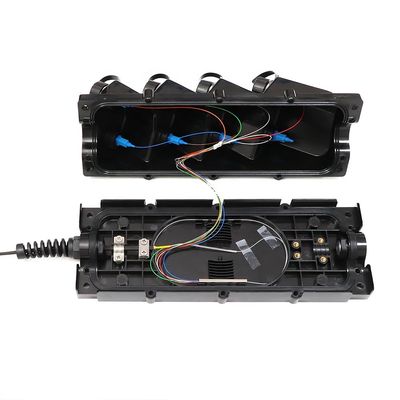

Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core 0

FTTH field

TraditionalsolutionuseONUorFDH(OpticalNetworkUnit/FiberDistributionHub),whentrunkopticalcablearrivestooutside ofmansionsandvillas.FTTXEnclosurecanreplaceONUorFDHbecauseithasfiberdistributionfunction.Inside,itcanbefixed 2-4pcs1*8or1*16PLC,andcanbeput24pcsfiberspliceprotectionsleeves.Aftermatingwith1-48FIP67preassembledwaterprof connector,FTTXEnclosurecanconnecteachmansionandvillaorlowvoltagesilodirectly.Itcanbefixedoutsideofmansions And villas,orholdingpoleinstallation.FTTXEnclosurecanreducesignallossthroughlessconnectingnode.Forinfactory Preassembled FTTXEnclosure,it’snoneedhighskilloperatorbecauseofnofiberspliceoperation.Installationefficiencycanbe increasedby40%.

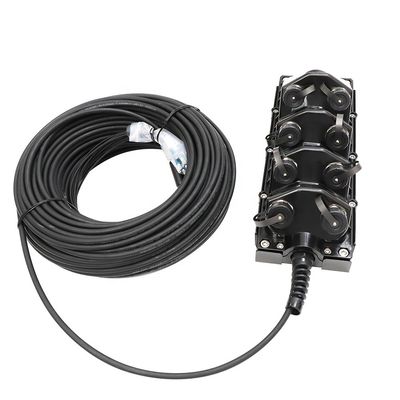

Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core 1

FTTA field

Traditionally,RemoteRadioUnit(RRU)andBuildingBasebandUnit(BBU)connectedbyopticalfibercable,formestar networktopology.EachRRUneedoneduplexoutdoorcablelinktoBBU.Installationwillneedmoretimeandcostwillbehigh. FTTXEnclosureworkasanAggregation/Demarkbox,linkRRUandBBUtogether.FromBBUtoFTTXEnclosure,onlyneed onemulti-fiberhybridcable.ThenFTTXEnclosuredividefiberstoeachRRUthroughIP67preassembledwaterproofcable assemblies.RRUcangetpowerthroughassembledpowerconnectoronFTTXEnclosure.Itcanavoidneedlessduplication.

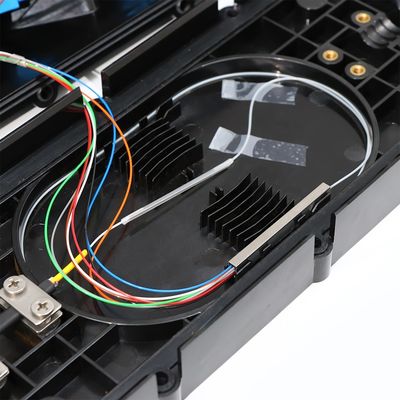

Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core 2

Features and Benefits

1. Highcompatibility:canbeassembledODVA,Hconn(OptiTapcompatible),MiniSC,ODC,PTLC,PTMPOorpower adapter. Factory-sealedorfield assembly.
2. Strongenough:workingunder1200Npullingforcelong
3. From2to12portsforsingleormultifiberharshconnectors.
4. AvailablewithPLCorsplicesleeveforfiberdivide.
5. IP67waterproof
6. Wall-mounting,aerialinstallationorholdingpoleinstallation.
7. Decreasedanglesurfaceandheightmakesurenoconnectorinterferingwhen
8. MeetIEC61753-1standard.
9. Costeffective:save40%operating

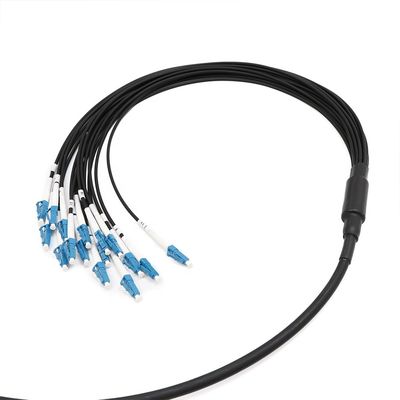

Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core 3
Dimensions(LxWxH)
365x137x90mm(Withoutcover)375x142x120mm(Withcover)
Materials
PC
Ingressprotection
IP68
Temperaturerange
-40~80℃
Cablestrengthmember
ArmouredorNon-armoured
Cabletype
Hybridornon-hybrid
RoundcableOD
5.0mmto14.0mm
Flatcabledimension
4.6x8.9mm
Cablejacketmaterial
LSZH,PEorTPU
BendingRadius
20D
Cablecrushresistance
200N/cmlongterm
Tensilestrength
1200Nlongterm
UVresistance
ISO4892-3
Fireprotectionrating
UL94-V0
NumberofPLC
1to2pcs
Numberoffusionprotectionsteeve
1to24pcs

Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.

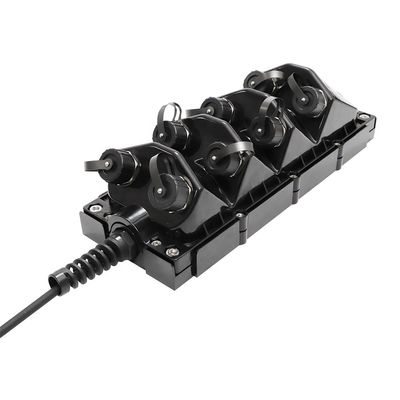

Waterproof IP68 Fiber Optic Terminal Box With 8 Core 12 Core 24 Core 4
