Steel Tube Type 4 Way Fiber Splitter , SC APC PLC Splitter 1x4

100 pieces
MOQ
$3.30/pieces 100-499 pieces
Price
Steel Tube Type 4 Way Fiber Splitter , SC APC PLC Splitter 1x4
Features Gallery Product Description Request A Quote
Features
Specifications
Type: FTTx Solutions, Micro Steel Tube Type
Fiber: G657A1
Fiber Count: 4 Cores
Connector Type: SC APC
Length: 0.5m/1m/2m/5m/customized
Application: FTTH FTTB FTTX Network
Operating Wavelength: 1260~1650(nm)
Return Loss (dB): 55/50
Warranty: 1 Year
High Light:

4 Way Fiber Splitter 1x4

,

4 Way Fiber Splitter PLC

,

Steel Tube PLC Splitter 1x4
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: CE RoHS ISO9001
Model Number: SC APC plc splitter
Payment & Shipping Terms
Packaging Details: CARTON BOX
Payment Terms: T/T, Western Union
Product Description

1x4 plc splitter steel tube type 4 way sc apc plc fiber optical splitter


Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica
optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-
to-channel uniformity. It widely used in PON(EPON/GPON) networks to realize optical signal power splitting.
The products are Telcordia GR-1209 and GR-1221, IEEE 802.3 ah for EPON, 802.3 av for 10G-EPON ITU-T G.984
for GPON, G.987 for 10G-GPON.

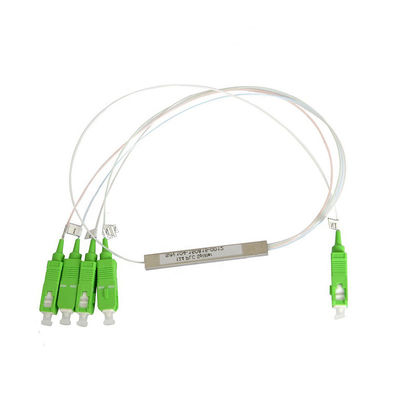

Steel Tube Type 4 Way Fiber Splitter , SC APC PLC Splitter 1x4 0
Feature
1.Mini type PLC Splitter's input and output tube diameter is 900um
2.Compact size, compare to the other PLC Splitter, Mini PLC Splitter's structure is smaller
3.Low Insertion loss and PDL
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength: From 1260nm to 1650nm
6.High Reliability and Stability
Technical data
1xN PLC Splitter Specification







Operating Wavelength
1260~1650(nm)






Fiber Type
G657A1 or as customers' order






Port Configuration
1x2
1x4
1x8
1x16
1x32
1x64
1x128
Insertion Loss (dB)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50






Operating Temperature
-40~+85






Directivity (dB)
≥ 55






Storage Temperature
-40~+85






2xN PLC Splitter Specification







Operating Wavelength
1260~1650(nm)






Fiber Type
G657A1 or as customers' order






Port Configuration
2x2
2x4
2x8
2x16
2x32
2x64
2x128
Insertion Loss (dB)
4
7.6
11
14.4
17.5
21
24.5
Loss Uniformity (dB)
0.6
1
1.2
1.5
1.8
2.2
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.35
0.4
0.4
Wavelength Dependent Loss(dB)
0.3
0.4
0.5
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50






Operating Temperature
-40~+85






Directivity (dB)
≥ 55






Storage Temperature
-40~+85






Application

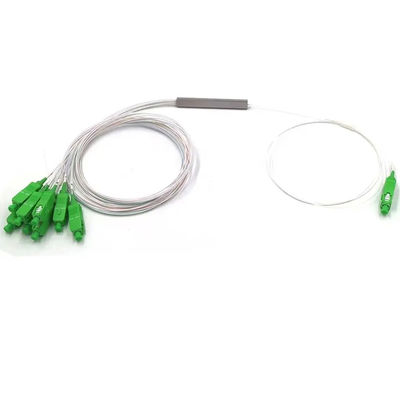

Steel Tube Type 4 Way Fiber Splitter , SC APC PLC Splitter 1x4 1
Package

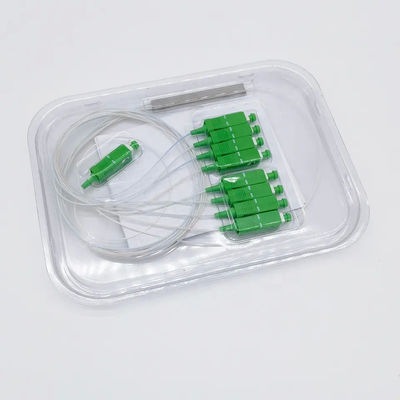

Steel Tube Type 4 Way Fiber Splitter , SC APC PLC Splitter 1x4 2
Related Products

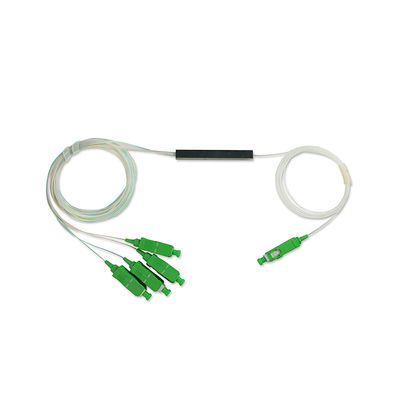

Steel Tube Type 4 Way Fiber Splitter , SC APC PLC Splitter 1x4 3
Our Company
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
