1, Split ratio 1:2,
2, Wide operating band: 1260-1650 nm,

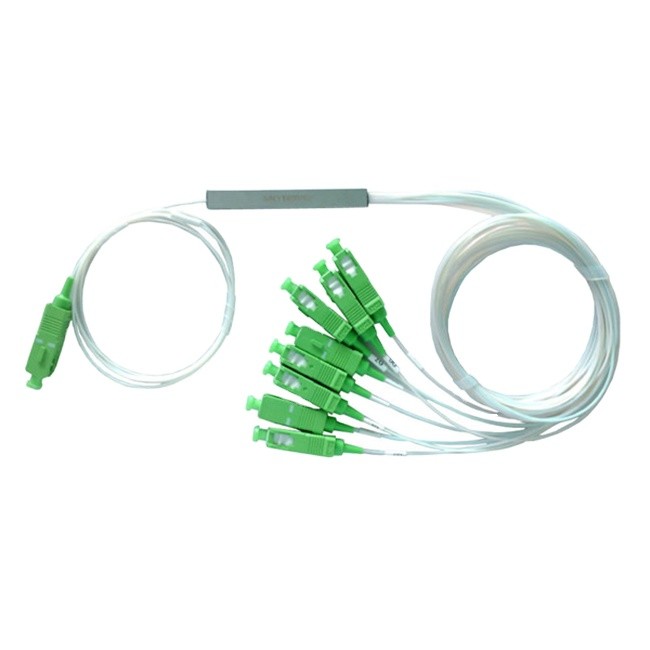

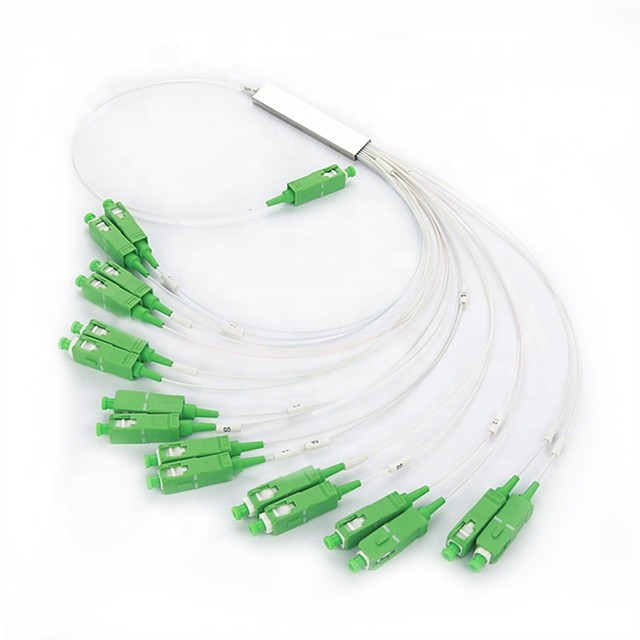

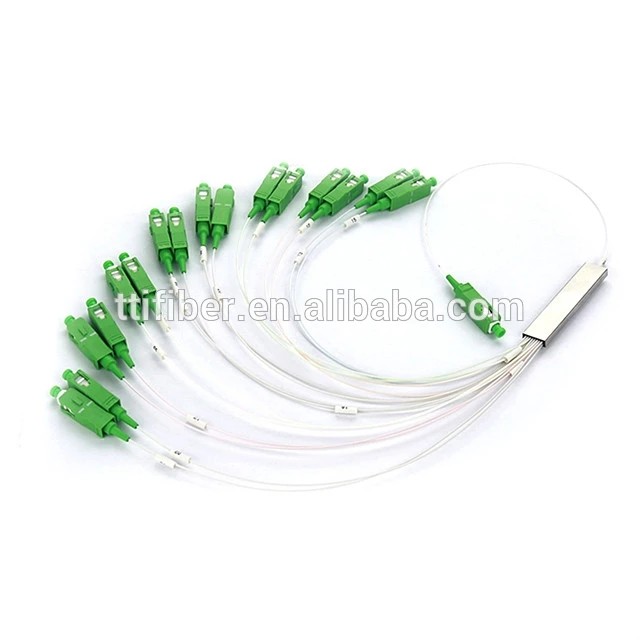

3, 1.5 m long optical cables terminated with SC connectors,
4, Compact size,
5, High stability.
|
1xN PLC Splitter Specification
|
|
|
|
|
|
|
|
|||||||
|
Operating Wavelength(nm)
|
1260~1650
|
|
|
|
|
|
|
|||||||
|
Fiber Type
|
G657A1 or as customers' order
|
|
|
|
|
|
|
|||||||
|
Port Configuration
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
1x128
|
|||||||
|
Insertion Loss (dB)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
|||||||
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
2.5
|
|||||||
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
|||||||
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||||
|
Temperature Dependent Loss (-40~85 ) (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||||
|
Return Loss (dB)
|
|
|
55/50
|
|
|
|
|
|||||||
|
Operating Temperature
|
|
|
-40~+85
|
|
|
|
|
|||||||
|
Directivity (dB)
|
|
|
≥ 55
|
|
|
|
|
|||||||
|
Storage Temperature
|
|
|
-40~+85
|
|
|
|
|
|||||||
