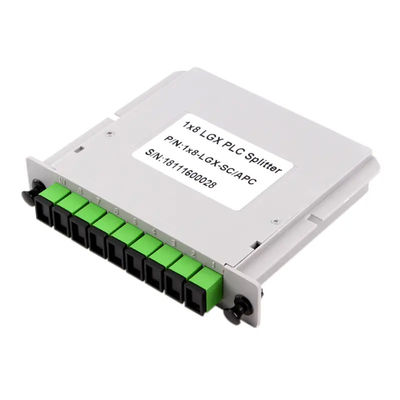

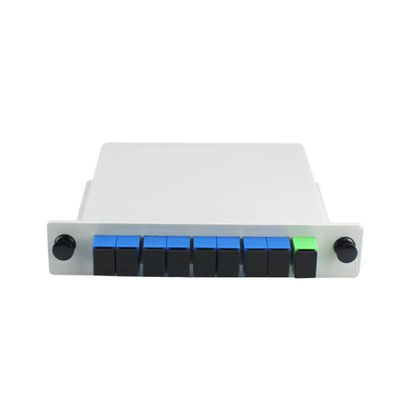

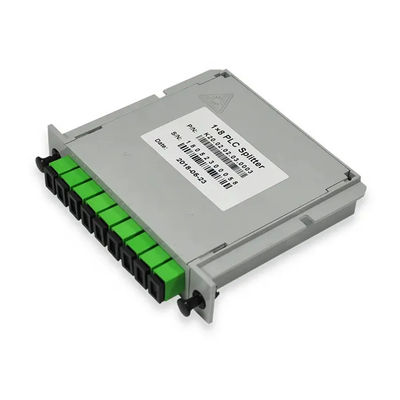

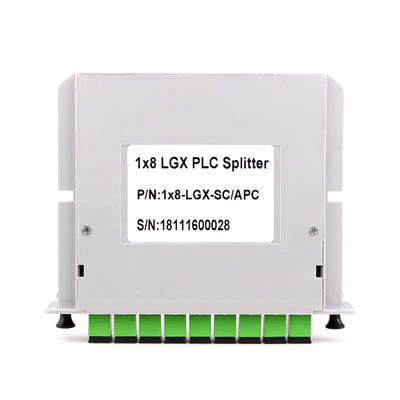

8 way PLC splitter cassette type 1x8 fiber optic PLC splitter with SC APC connector
Key Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: 1260-1650nm
6) Wide Operating Temperature: -40°C - 85°C
7) High Reliability and Stability
Application :
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems
Port Configuration
|
1x2
|
1x3
|
1x4
|
1X6
|
1x8
|
1X12
|
1x16
|
1x32
|
1x64
|
||||||||
Insertion Loss (dB)
|
4.1
|
6.5
|
7.5
|
10.0
|
10.8
|
12.9
|
13.8
|
17.0
|
21.4
|
||||||||
Loss Uniformity (dB)
|
0.6
|
0.6
|
0.6
|
0.6
|
0.8
|
1.0
|
1.2
|
1.5
|
1.5
|
||||||||
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.4
|
||||||||
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
||||||||
Temperature Dependent Loss (dB)
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
||||||||
Return Loss (dB)
|
UPC ≥50;APC≥55
|
|
|
|
|
|
|
|
|
||||||||
Directivity (dB)
|
≥ 55
|
|
|
|
|
|
|
|
|
||||||||
Operating Wavelength (nm)
|
1260~1650
|
|
|
|
|
|
|
|
|
||||||||
Fiber Type
|
G657A1 or customer specified
|
|
|
|
|
|
|
|
|
||||||||
Operating Temperature
|
-40~+85
|
|
|
|
|
|
|
|
|
||||||||
Storage Temperature
|
-40~+85
|
|
|
|
|
|
|
|
|
