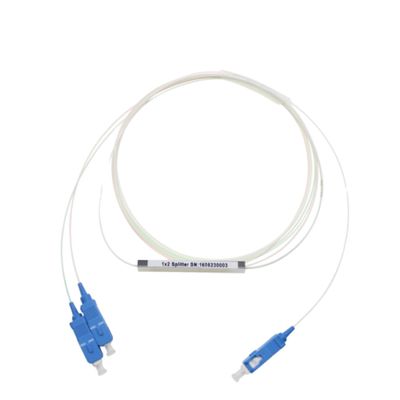

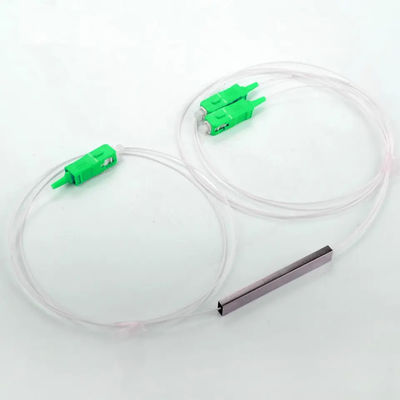

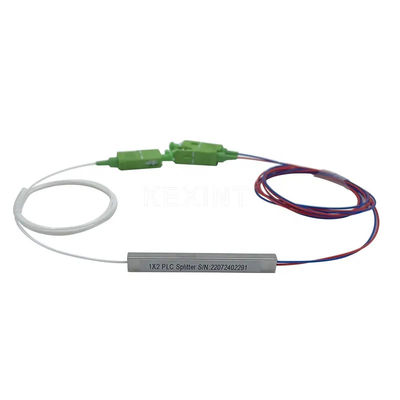

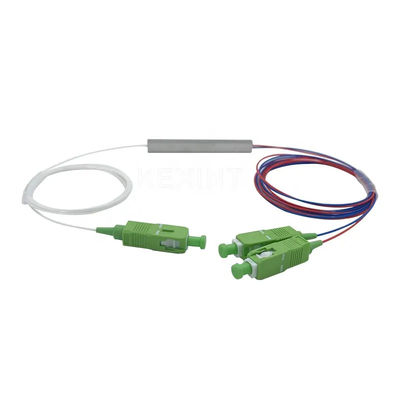

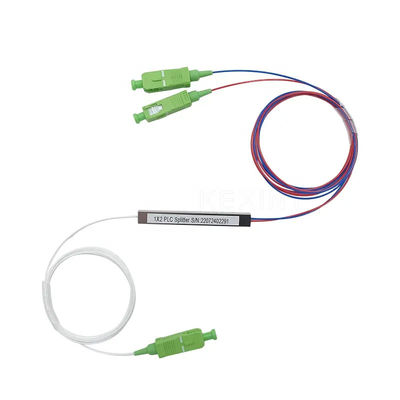

1, Split ratio 1:2
2, Wide operating band: 1260-1650 nm,
3, 1.5 m long optical cables terminated with SC connectors,
4, Compact size,
5, High stability.
|
Specifications
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Port Configuration
|
1x2
|
1x3
|
1x4
|
1X6
|
1x8
|
1X12
|
1x16
|
1x32
|
1x64
|
|||||||||
|
Insertion Loss (dB)
|
4.1
|
6.5
|
7.5
|
10.0
|
10.8
|
12.9
|
13.8
|
17.0
|
21.4
|
|||||||||
|
Loss Uniformity (dB)
|
0.6
|
0.6
|
0.6
|
0.6
|
0.8
|
1.0
|
1.2
|
1.5
|
1.5
|
|||||||||
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.4
|
|||||||||
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|||||||||
|
Temperature Dependent Loss (dB)
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|||||||||
|
Return Loss (dB)
|
UPC ≥55；APC≥55
|
|
|
|
|
|
|
|
|
|||||||||
|
Directivity (dB)
|
≥ 55
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating Wavelength (nm)
|
1260～1650
|
|
|
|
|
|
|
|
|
|||||||||
|
Fiber Type
|
G657A1 or customer specified
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating Temperature
|
-40~+85
|
|
|
|
|
|
|
|
|
|||||||||
|
Storage Temperature
|
-40~+85
|
|
|
|
|
|
|
|
|
|||||||||
