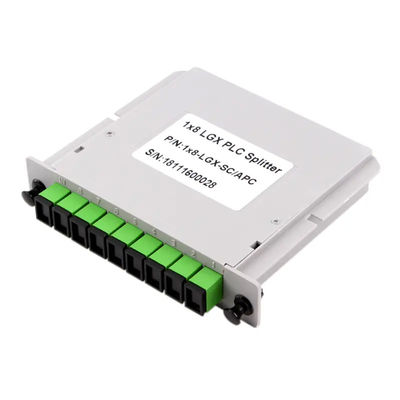

Cassette Type PLC Fiber Optic Splitter 1x8 With SC UPC Connector

2000 pieces
MOQ
$5.20 - $5.50/pieces
Price
Cassette Type PLC Fiber Optic Splitter 1x8 With SC UPC Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Type: PLC Splitter
Use: FTTH
Warranty Time: 1 Year
Product Name: Cassette Type PLC Splitter
Size: 100x25x130mm(WxHxL)
Insertion Loss: 10.8dB
Loss Uniformity: 0.8dB
Connector: SC UPC
Return Loss: UPC ≥50;APC≥55
Operating Wavelength (nm): 1260~1650
Fiber Type: G657A1 Or Customer Specified
Operating Temperature: -40~+85
Certificate: ISO9001
High Light:

Fiber Optic Splitter 1x8

,

UPC Fiber Optic Splitter

,

Cassette 1x8 plc fiber splitter

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: 1*8 cassette PLC Splitter
Payment & Shipping Terms

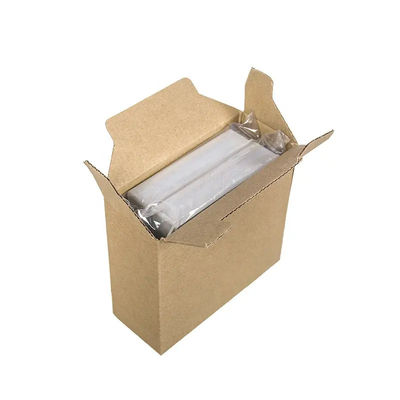

Packaging Details: Carton Box
Payment Terms: T/T, Western Union
Supply Ability: 100000 Piece/Pieces per Week
Product Description



Cassette type fiber optic plc splitter 1x8 with SC/UPC connector

Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These are widely used in PON networks to realize optical signal power splitting as a low-cost solution.
Product Features
Cassette Type PLC Fiber Optic Splitter 1x8 With SC UPC Connector 0




* Low Insertion Loss,Low PDL(Polarization Dependent Loss)
* Compact Design
* Exceptional Reliability and Stability
* Wide Operating Wavelength: From 1260nm to 1650nm
* Wide Operating Temperature: From -20°C to 70°C
* Conformed to RoHS




Application
* FTTX Systems
* LAN, WAN and Metro Networks
* Analog/Digital Passive Optical Networks
* CATV Networks
* Other applications in fiber optic systems
Technical data
Specifications









Port Configuration
1x2
1x3
1x4
1X6
1x8
1X12
1x16
1x32
1x64
Insertion Loss (dB)
4.1
6.5
7.5
10.0
10.8
12.9
13.8
17.0
21.4
Loss Uniformity (dB)
0.6
0.6
0.6
0.6
0.8
1.0
1.2
1.5
1.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.2
0.2
0.2
0.25
0.3
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Dependent Loss (dB)
0.4
0.4
0.4
0.4
0.4
0.4
0.5
0.5
0.5
Return Loss (dB)
UPC ≥50;APC≥55








Directivity (dB)
≥ 55








Operating Wavelength (nm)
1260~1650








Fiber Type
G657A1 or customer specified








Operating Temperature
-40~+85








Storage Temperature
-40~+85

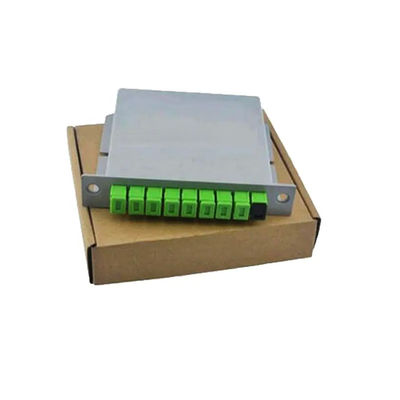

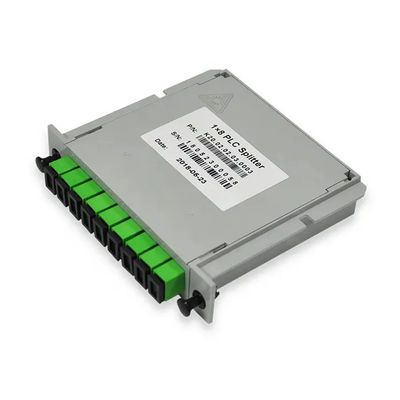

Product Show
Cassette Type PLC Fiber Optic Splitter 1x8 With SC UPC Connector 1
Cassette Type PLC Fiber Optic Splitter 1x8 With SC UPC Connector 2
Our Company
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
