Home /Products/Fiber Optic Splitter/SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength

SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength

10 pieces
MOQ
$6.00 - $9.00/pieces
Price
SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength
Features Gallery Product Description Request A Quote
Features
Specifications
Type: PLC Splitter
Use: FTTH
Warranty Time: 1 Year
Network: Wired LAN
Product Name: 1*16 Cassette PLC Splitter
Fiber Type: G657A1 Or As You Request
Connector Type: SC UPC
Wavelength: 1260-1650nm
Return Loss (dB): ≥55
Operating Temperature: -40~+85
Directivity (dB): ≥ 55
Package: Box
Application: FTTH FTTB FTTX Network
High Light:

Fiber Optic Splitter 1x16

,

Fiber Optic Splitter 1650nm

,

Cassette 1x16 fiber splitter
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: 1*16 cassette PLC Splitter
Payment & Shipping Terms
Packaging Details: Carton Box
Payment Terms: T/T, Western Union
Product Description

Supply cassette type plc splitter 1x16 sc upc plc splitter cassette


PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

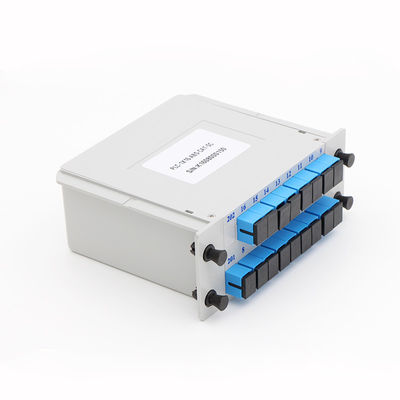

SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 0

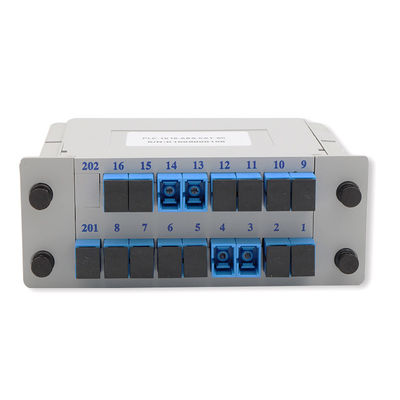

SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 1



1.Excellent Mechanical,Small Size
2.High Reliability
3.Low insertion Loss and low Polarization Dependent loss
4.High channel counts
5.Excellent Environmental Stability and Widely Used





6.FTTX Deployments(GPON/BPON/EPON)
7. Cable television (CATV)
8. CATV Links
9.Passive optical networks(PON)



Technical data
ITEM
1x2
1x4
1x8
1x16
1x32
1x64
MAX. Insertion Loss(dB)
4.1
7.4
10.5
16.8
17.0
20.4
MAX. Channel Uniformity(dB)
0.6
0.6
0.6
0.6
0.8
1.0
MAX. PDL(dB)
0.2
0.2
0.2
0.2
0.2
0.3
Directivity(dB)
≥55





Return Loss (dB)
≥55





Storage Temperature℃
－40~+85





Operating Temperature℃
－40~+85





More Models

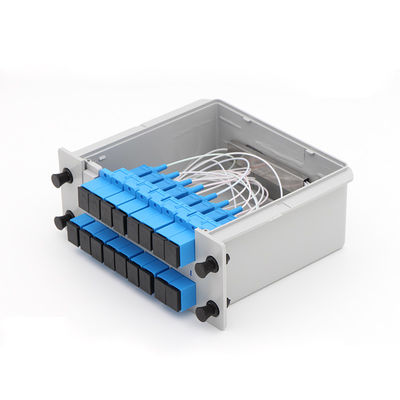

SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 2
Related Products

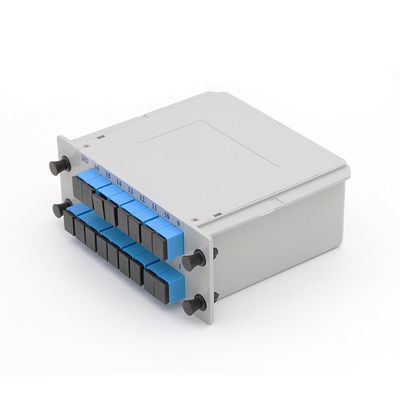

SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 3
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 4
SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 5
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
SC UPC PLC Fiber Optic Splitter 1x16 Cassette Type 1650nm Wavelength 6
