Name: customized Fiber Optic Splitter , 1X32 Cassette PLC Splitter With SC UPC Connector
Brand: ODM/OEM
SKU: 1*32 cassette PLC Splitter
Price: 10.00 USD
Availability: InStock
Rating: 5 (159 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: PLC Splitter

Use: FTTH

Product Name: 1*32 Cassette PLC Splitter

Fiber Type: G657A1 Or As You Request

Connector Type: SC UPC

Wavelength: 1260-1650nm

Return Loss (dB): ≥55

Operating Temperature: -40~+85

Directivity (dB): ≥ 55

Package: Box

Application: FTTH FTTB FTTX Network

High Light:

Customized Fiber Optic Splitter

Cassette Fiber Optic Splitter

1X32 Cassette PLC Splitter

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: 1*32 cassette PLC Splitter

Payment & Shipping Terms

Packaging Details: Carton Box

Payment Terms: T/T, Western Union

Gallery

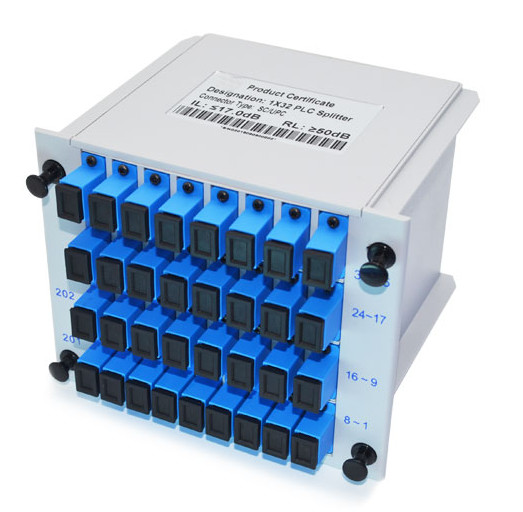

customized Fiber Optic Splitter , 1X32 Cassette PLC Splitter With SC UPC Connector

Product Description

Supply PLC splitter cassette 1X32 sc cassette type PLC splitter

PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

1.Excellent Mechanical,Small Size

2.High Reliability

3.Low insertion Loss and low Polarization Dependent loss

4.High channel counts

5.Excellent Environmental Stability and Widely Used

6.FTTX Deployments(GPON/BPON/EPON)

7. Cable television (CATV)

8. CATV Links

9.Passive optical networks(PON)

Technical data

ITEM	1x2	1x4	1x8	1x16	1x32	1x64
MAX. Insertion Loss(dB)	4.1	7.4	10.5	16.8	17.0	20.4
MAX. Channel Uniformity(dB)	0.6	0.6	0.6	0.6	0.8	1.0
MAX. PDL(dB)	0.2	0.2	0.2	0.2	0.2	0.3
Directivity(dB)	≥55
Return Loss (dB)	≥55
Storage Temperature℃	－40~+85
Operating Temperature℃	－40~+85

More Models

Related Products

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
