FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode

100 pieces
MOQ
$0.50 - $0.98/pieces
Price
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH
Warranty Time: 3
Network: 4g, 3G
Product Name: SC-SC Fiber Optic Patch Cord
Connectors: SC/UPC (APC Optional)
Core: Simplex Or Duplex
Length: 3M(1M,2M Optional)
No. Of Fiber: 1
Nominal Outer Diameter: 0.9mm/2.0mm/3.0mm
Mode: Single Mode Or Multi Mode
Delivery: Fast Shipment
Application: Connections To CATV Telecommunication Networks
Color: Orange, Yellow, Blue, Aqua
High Light:

FTTH Jumper Fiber Cable Assembly

,

SC Fiber Cable Assembly

,

UPC Single Mode Fiber Cable

Basic Infomation
Place of Origin: China
Brand Name: OEM
Model Number: SC -SC Patch Cord
Payment & Shipping Terms

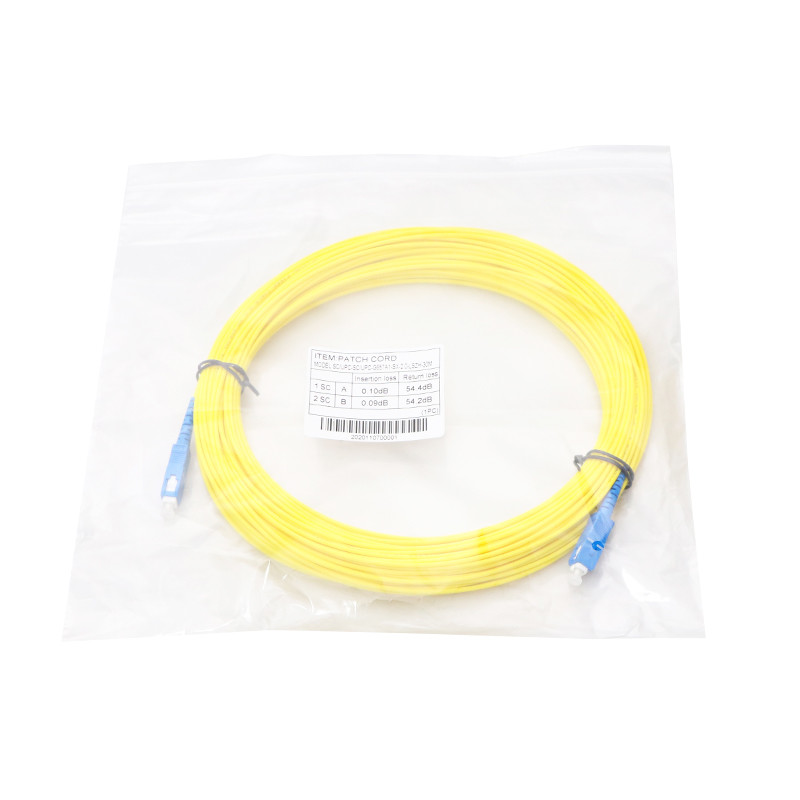

Packaging Details: Each patch cord in a plastic bag with test data High quality Single Mode G657A 9/125 Simplex Duplex SC APC-SC/APC Fiber Optic Patch Cord
Payment Terms: T/T, Western Union
Supply Ability: 200000 Piece/Pieces per Quarter
Product Description
Product Description



FTTH Jumper SC/UPC to SC/UPC Single-Mode SC Fiber Optic Patch Cord

1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 0
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 1

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical



FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Mode
Single mode

Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm

850/1310nm
Durability(500 Matings)
≤0.2dB


Operating Temperature
-40℃~+60℃


Storage Temperature
-45℃~+85℃


Fire Resistant
IEC 60794-2-30


Standards-Compliant
ROHS,IEC and GR-326


FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 2
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 3
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 4
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 5
Main Products
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 6
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 7
Company Profile
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 8
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant andalso obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.
FTTH Jumper Fiber Cable Assembly SC UPC To SC UPC Single Mode 9
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
