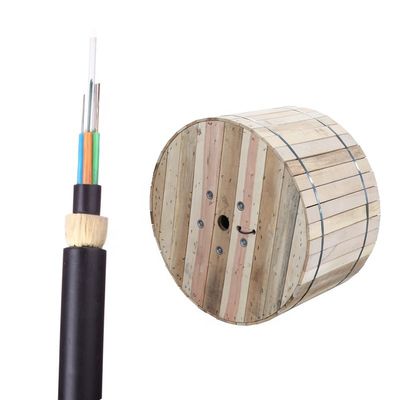

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling
|
Cable fiber count
|
|
/
|
2~30
|
32~60
|
62~72
|
96
|
144
|
|||||
|

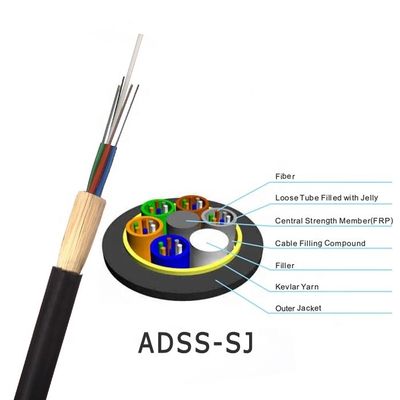

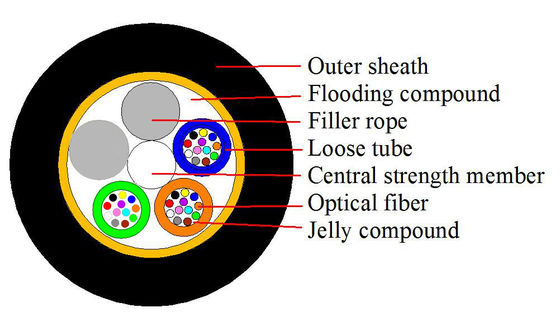

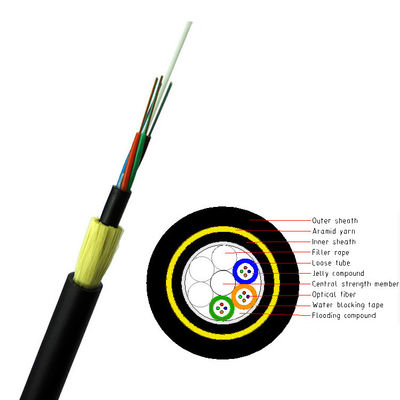

Structure
|
|
/
|
1+5
|
1+5
|
1+6
|
1+8
|
1+12
|
|||||
|
Fiber style
|
|
/
|
G.652D
|
|
|
|
|
|||||
|
Central strength member
|
material
|
mm
|
FRP
|
|
|
|
|
|||||
|
|
Diameter (average)
|
|
1.5
|
1.5
|
2.1
|
2.1
|
2.1
|
|||||
|
Loose Tube
|
Material
|
mm
|
PBT
|
|
|
|
|
|||||
|
|
Diameter (average)
|
|
1.8
|
2.1
|
2.1
|
2.1
|
2.1
|
|||||
|
|
Thickness(average)
|
|
0.32
|
0.35
|
0.35
|
0.35
|
0.35
|
|||||
|
|
Max fiber/loose tube
|
|
6
|
12
|
12
|
12
|
12
|
|||||
|
|
Tubes color
|
|
Full color identification
|
|
|
|
|
|||||
|
|
Fiber excess length
|
%
|
0.7~0.8
|
|
|
|
|
|||||
|
Water resistance
|
Material
|
/
|
Cable jelly + water resistant layer
|
|
|
|
|
||||||
|
Non-metallic strengthen components
|
Material
|
/
|
Aramid Yarn
|
|
|
|
|
||||||
|
Outer sheath
|
material
|
mm
|
MDPE
|
|
|
|
|
||||||
|
|
Outer sheath
|
|
1.8mm
|
|
|
|
|
||||||
|
Cable diameter(average)
|
|
mm
|
9.6
|
10.2
|
10.8
|
12.1
|
15
|
||||||
|
Cable weight (Approximate)
|
|
kg/km
|
70
|
80
|
90
|
105
|
125
|
||||||
|
Cable Sectional area
|
|
mm2
|
72.38
|
81.72
|
91.61
|
115
|
176.7
|
||||||
|
Attenuation coefficient(Max)
|
1310nm
|
dB/km
|
0.35
|
|
|
|
|
||||||
|
|
1550nm
|
|
0.21
|
|
|
|
|
||||||
|
Rated Tensile Strength(RTS)
|
|
kn
|
5.8
|
|
|
|
|
||||||
|
Max allowed tension( MAT)
|
|
kn
|
2.2
|
|
|
|
|
||||||
|
Annual average operating tension (EDS)
|
|
kn
|
3.0
|
|
|
|
|
||||||
|
Young's modulus
|
|
kn/mm2
|
7.6
|
|
|
|
|
||||||
|
Coefficient of thermal expansion
|
|
10-6/℃
|
9.3
|
|
|
|
|
||||||
|
Crush resistance
|
Long term
|
N/100mm
|
1100
|
|
|
|
|
||||||
|
|
Short term
|
|
2200
|
|
|
|
|
||||||
|
Permission Bent Radius
|
static
|
mm
|
15 of OD
|
|
|
|
|
||||||
|
|
dynamic
|
|
20 of OD
|
|
|
|
|
||||||
|
Temperature
|
When laying
|
℃
|
-20~+60
|
|
|
|
|
||||||
|
|
Storage and transportation
|
|
-40~+70
|
|
|
|
|
||||||
|
|
runing
|
|
-40~+70
|
|
|
|
|
||||||
|
Scope of application
|
Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm
|
|
|
|
|
|
|
||||||
|
Cable Marks
|
Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year
(Or at customer’s request) |
|
|
|
|
|
|
||||||
