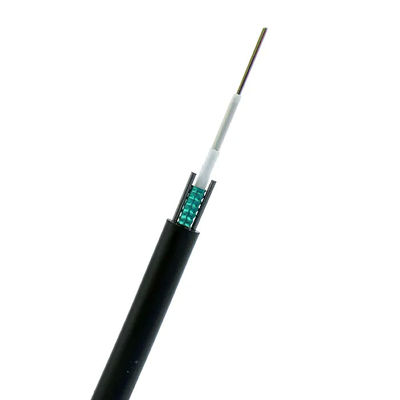

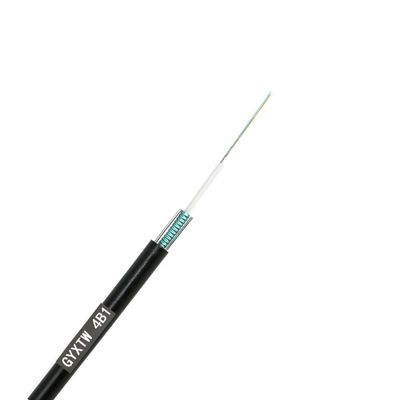

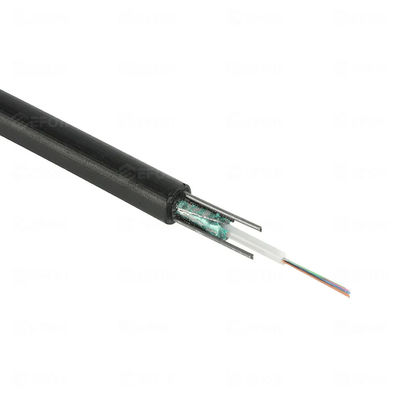

Name: Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable
Brand: ODM/OEM
SKU: GYXTW
Price: 0.10 USD
Availability: InStock
Rating: 4.7 (171 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Outdoor Fiber Optic Cable

Number Of Conductors: 4

Fiber Type: G652D/G657A1/G657A2

Fiber Count: 2-24 Cores

Strength Member: 0.8mm Steel Wire

Loose Tube: PBT

Water Blocking Layer: PSP Water Blocking Tape

Armoring: Steel Strip

Outer Sheath: MDPE

Color: Black

High Light:

Steel Tape 4 Core Armoured Cable

Underground 4 Core Armoured Cable

Outdoor Underground Fiber Cable

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: CE/ROHS/ISO9001

Model Number: GYXTW

Payment & Shipping Terms

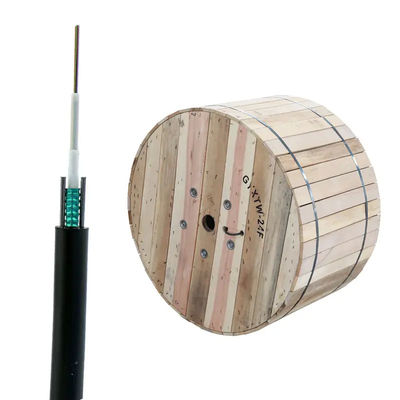

Packaging Details: 2-4 km/wooden drum

Payment Terms: T/T, Western Union

Supply Ability: 100 Kilometer/Kilometers per Week

Gallery

Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable

Product Description

Manufacturer outdoor steel tape 4 core armored cable underground fiber optic cable

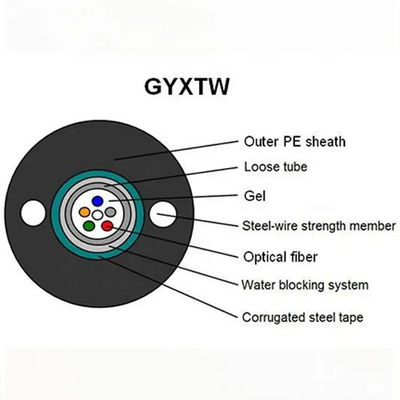

Description

1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.

2.The tubes are filled with a water-resistant filling compound.

3.The tube is wrapped with a layer of PSP longitudinally.

4.Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.

5.Two parallel steel wires are placed at the two sides of the steel tape.

6.The cable is completed with a polyethylene (PE) sheath.

Feature

* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length

Technical data

No. of cable			2~8	10~12	14~24
Fiber Model			G.652D
Strength Member	Material	Steel Wire
Strength Member		Diameter(±0.05)mm	0.8	0.8	0.8
Loose Tube	Material	PBT
		Diameter(±0.06)mm	2.1	2.4	2.8
		Thickness(±0.03)mm	0.32	0.35	0.4
		The Max.Core NO./Tube	8	12	24
Water Blocking layer(Material)			Water Blocking Tape
Armoring	Material	Steel Strip
Armoring		Thickness(±0.03)mm	0.25
Outer Sheath	Material	MDPE
Outer Sheath		Thickness(±0.2)mm	2
Cable Diameter(±0.2)mm			7.9	8.1	8.5
Cable Weight(±5)kg/km			60	63	68
Min. bending radius	Without Tension	10.0×Cable -φ
Min. bending radius		Under Maximum Tension	20.0×Cable -φ
Temperature range(℃)	Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70

Application

Our Company

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
