No. of cable
|
|
4
|
8
|
12
|
24
|
48
|
72
|
144
|
|||||||
|
Fiber Model
|
|
G.652D
|
|
|
|
|
|
|
|||||||
|

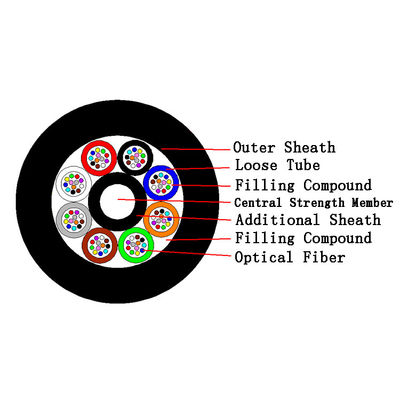

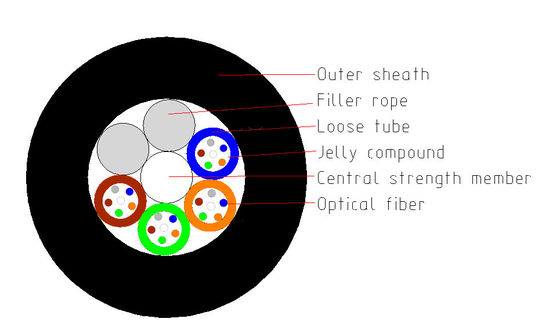

Design(StrengthMember+Tube&Filler)
|
|
1+5
|
|
|
|
|
1+6
|
1+12
|
|||||||
|
Central Strength Member
|
Material
|
FRP
|
|
|
|
|
|
|
|||||||
|
|
Diameter(±0.05)mm
|
1.5
|
|
|
|
|
2.0
|
|
|||||||
|
Loose Tube
|
Material
|
PBT
|
|
|
|
|
|
|
|||||||
|
|
Diameter(±0.06)mm
|
1.72
|
|
|
|
|
2.0
|
|
|||||||
|
|
Thickness(±0.03)mm
|
0.30
|
|
|
|
|
0.32
|
|
|||||||
|
|
The Max.Core NO./Tube
|
4
|
|
6
|
|
12
|
|
|
|||||||
|
Filler Rope
|
Material
|
LDPE
|
|
|
|
|
|
|
|||||||
|
|
Colour
|
White
|
|
|
|
|
|
|
|||||||
|
|
Diameter(±0.06)mm
|
1.7
|
|
|
|
2.0
|
|
|
|||||||
|
Water Blocking layer(Material)
|
|
Flooding Compound
|
|
|
|
|
|
|
|||||||
|
Outer Sheath
|
Material
|
MDPE
|
|
|
|
|
|
|
|||||||
|
|
Thickness(±0.2)mm
|
1.8
|
|
|
|
|
|
|
|||||||
|
Cable Diameter
|
|
8.3
|
|
|
|
8.9
|
9.4
|
13.2
|
|||||||
|
Cable Weight
|
|
55
|
|
|
|
65
|
75
|
160
|
|||||||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|
|
|
|
|
|
|||||||
|
|
Under Maximum Tension
|
20.0×Cable-φ
|
|
|
|
|
|
|
|||||||
|
Temperature range
|
Installation
|
-20~+60
|
|
|
|
|
|
|
|||||||
|
|
Transport&Storage
|
-40~+70
|
|
|
|
|
|
|
|||||||
|
|
Operation
|
-40~+70
|
|
|
|
|
|
|
|||||||
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes, we offer 1-2 years warranty to our formal products.
